  9. Digital Multimeter TRMS/Low Impedance, 1000V
Shop All Digital Multimeters
Klein Tools

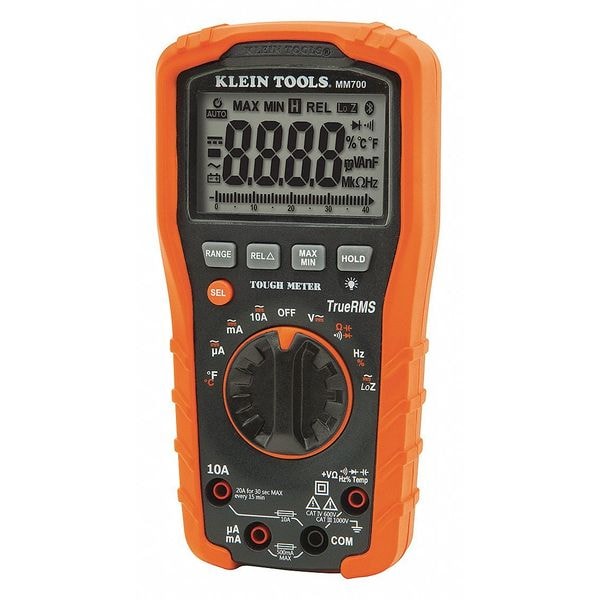

Digital Multimeter TRMS/Low Impedance, 1000V

product price: $99.97
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Multimeter Style Full Size
  • Instrument Counts 4,000
  • Basic DC Accuracy +/-1.00% of Reading + 3 Digits
  • Instrument Safety Rating CAT IV 600V
  • Max. AC Volts 1,000
See all product information

Product Information

Dimensions

Manufacturers Warranty Length 2 yr
Depth 7 in
Overall Height 2.1 in
Overall Width 3.6 in
Battery Size AAA
Pulse Width Yes

Details

Multimeter Style Full Size
Item Digital Multimeter
Instrument Counts 4,000
Basic DC Accuracy +/-1.00% of Reading + 3 Digits
Instrument Safety Rating CAT IV 600V
Max. AC Volts 1,000
Max. DC Volts 1,000
Max. AC Amps 10
Max. DC Amps 10
Audible Continuity Yes
Max. Ohms 40 megohm
Auto Ranging Yes
Temp. Range 0 Degrees to 1500 Degrees F
Battery Type AAA Alkaline
Special Features Built to Withstand a 6.6 ft (2 m) Drop and Withstand Daily Wear and Tear on the Job Site, CAT IV 600V Safety Rating, For use in Basic and Controlled Electromagnetic Environments Such as Residential, Business and Light-Industrial Locations, Includes Carrying Pouch, Test Leads, Alligator Clips, Thermocouple with Adapter and Batteries, Low Battery Indicator and Easily Accessible Battery and Fuse Replacement Compartment, Low Impedance (LoZ) Mode for Identifying and Eliminating Ghost or Stray Voltages, Multimeter with Automatic Ranging True Root Mean Square (TRMS) Technology for Increased Accuracy, Tester Measures upto 1000V AC/DC Voltage, 10A AC/DC Current and 40Mohms Resistance Plus Temperature, Capacitance, Frequency, Duty-Cycle, Test Diodes and Continuity
Duty Cycle Yes
Instrument Frequency Counter Range 0.001 Hz to 100 MHz
Data Logging No
Includes Alligator Clips, Battery, Carrying Case, Test Leads, Thermocouple
Series KLEIN TOOLS (R) MM700
Data Hold Yes
Display LCD
Auto Power Off Yes
Standards CE, cETLus
Min./Max. Memory yes
Peak Hold Yes
AC Response TRMS
Bar Graph Yes
Diode Test Yes
Calibration Certificate Included No
Capacitance Range 40 nF to 4000 uF
Interface None
Weight 14.4 oz
Intrinsically Safe No
Minimum Operating Temperature 14 Degrees F
Basic DC Voltage Accuracy +/-1.00% + 8 Digits
Maximum DC Current Measurement 10 A
Battery Access Yes
Maximum Storage Temperature 140 Degrees F
Minimum Frequency Measurement 1 Hz
Display Type LCD
Software Included No
Dustproof No
Minimum DC Voltage Measurement 400 V
Bluetooth Compatible No
Current Leakage Testing No
Minimum AC Voltage Measurement 4 V
Minimum/Maximum Memory Yes
AC Response Calculation TRMS
Maximum Frequency Measurement 500 kHz
Fuse Access Yes
Maximum DC Voltage Measurement 1,000 V
Minimum Temperature Measurement 0 Degrees F
Computer Interface Connection Type None
Maximum Temperature Measurement 1,500 Degrees F
Bar Graph Included Yes
Minimum Storage Temperature -4 Degrees F
Thermal Imaging No
Maximum AC Current Measurement 10 A
IP Rating IP42
Minimum AC Current Measurement 400 uA
Battery Chemistry Alkaline
Temperature Measurement Resolution 0 Degrees F
Capacitance Measurement Accuracy +/-5.00%
Maximum AC Voltage Measurement 1,000 V
Basic AC Current Accuracy +/-1.5%
Basic AC Voltage Accuracy +/-1%
Parameters Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K)
Minimum DC Current Measurement 400 uA
Batteries Included Yes
Temperature Measurement Accuracy +/-2.00%
Maximum Resistance Measurement 40 megaohm
Frequency Measurement Accuracy +/-1.00%
Minimum Capacitance Measurement 40 nF
Minimum Resistance Measurement 400 ohm
Maximum Capacitance Measurement 4,000 uF
Maximum Operating Temperature 122 Degrees F
Resistance Measurement Accuracy +/-2%
Waterproof No
Basic DC Current Accuracy +/-1%
Removable Screen No

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-1 Percent, Basic DC Voltage Accuracy +/-1.00 Percent + 8 Digits, Data Hold Yes, Basic DC Current Accuracy +/-1 Percent, Instrument Safety Rating CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 4,000
