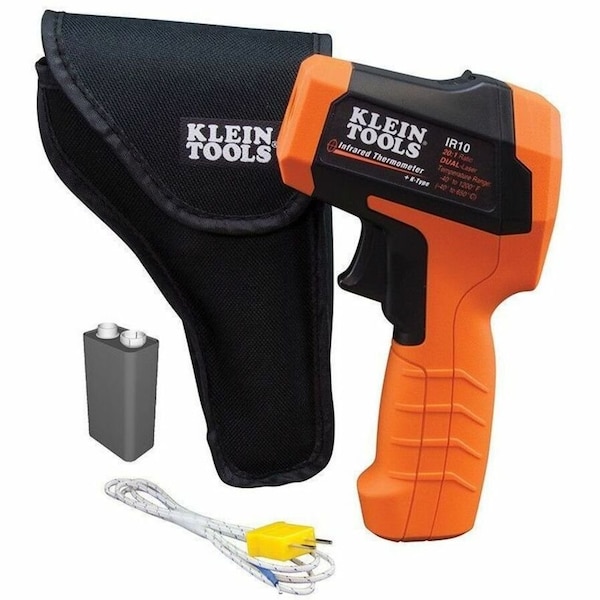

Klein Tools Dual-Laser Infrared Thermometer, 20:1 IR10 - main

Dual-Laser Infrared Thermometer, 20:1

  • Mfr # IR10

  • Zoro # G0860761

product price: $129.99
/ea
Free Shipping & Returns

Key Features

Focus Spot Size and Distance - Infrared
1 in @ 20 in
Temp. Range (F) - Infrared
-40 Degrees to 1202 Degrees
Emissivity
Adjustable 0.10 to 1.00
Temp. Accuracy (F) - Infrared
+/-1.5% of Reading or +/-1.5 Degrees Whichever is Greater
Temp. Accuracy (C) - Infrared
+/-1.5% of Reading or +/-1.5 Degrees Whichever is Greater
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IR10
Zoro #
G0860761
UPC #
092644691850
Country of Origin
China

Dimensions

Focus Spot Size and Distance - Infrared
1 in @ 20 in
Manufacturers Warranty Length
2 yr
Manufacturer Warranty Length
2 yr
Battery Size
9V

Details

Item
Infrared Thermometer
Temp. Range (F) - Infrared
-40 Degrees to 1202 Degrees
Emissivity
Adjustable 0.10 to 1.00
Temp. Accuracy (F) - Infrared
+/-1.5% of Reading or +/-1.5 Degrees Whichever is Greater
Temp. Accuracy (C) - Infrared
+/-1.5% of Reading or +/-1.5 Degrees Whichever is Greater
Calibration Certificate Included
No
Data Logging - Instrument
Yes
Display - IR Camera
LCD
Item - Infrared Thermometer
Infrared Thermometer
Battery Type
9V
Memory - Instrument
No
Response Time
150 msec
Trigger
Yes
Alarm Indication
Audible
Special Features
Dual Targeting Lasers, Hi and Low Limits with Simultaneous Audible and Visual Alarms When Limits are Breached, Bright Backlit Display, Works with K-Type Probe
Repeatability
+/- 0.8% of Reading or +/- 1 Degrees C
Data Hold
Yes
Temperature Alarm - Thermometer
No
Laser Sighting - Infrared
Dual
Resolution
0.1 Degrees F/C
Standards
21 CFR 1040.10, 21 CFR 1040.11, CE, Class II Laser, EN 608251:2014, EN 61326-1:2013
Includes
Carrying Pouch, K Type Probe
Temp. Range (C) - Infrared
-40 Degrees to 600 Degrees
Operating Temp. Range
-40 Degrees to 1200 Degrees F
Data Logging
Yes
Field of View
Not Rated
Environmental Applications - Air Conditioners and Heat Pumps
Non-Medical
Features
Gas or Liquids using a Standard K-Type Probe, Incorporates Surface Temperature Measurement Capability using IR Emission and can also Measure Bulk Temperatures of Air
Body Style
Full Size
Minimum Operating Temperature Degrees F
-40 Degrees F
Maximum Emissivity Setting
1.00
Number of Batteries Required
1
Temperature Alerts
High Temperature, Low Temperature
Mounting Style
Handheld Only
Maximum Temperature Measured Degrees C
600 Degrees C
Includes Work Light
No Work Light Included
Alert Type
Light, Sound
Resolution Degrees C
0.1 Degrees C
Calibration Certificate Type
Not Certified
Accuracy Degrees C
+/-1.5% of Reading or +/-1.5 Degrees Whichever is Greater
Secondary Measuring Method
Probe
Resolution Degrees F
0.1 Degrees F
Maximum Operating Temperature Degrees F
1,200 Degrees F
Minimum Emissivity Setting
0.10
Distance To Spot Ratio
20:1
Battery Voltage
9V
Maximum Temperature Measured Degrees F
1,202 Degrees F
Laser Sighting Type
Dual
Minimum Temperature Measured Degrees C
-40 Degrees C
Batteries Included
Yes
Accuracy Degrees F
+/-1.5% of Reading or +/-1.5 Degrees Whichever is Greater
Minimum Temperature Measured Degrees F
-40 Degrees F
Intrinsic Safety
Not Specified Intrinsically Safe
Testing Functions
Average, Difference, Maximum Temperature, Minimum Temperature
Battery Run Time
8 hr
Emissivity Adjustability
Adjustable
Digital Display Screen Type
LCD with Backlight

Description

Infrared Thermometer, Laser Sighting Type Dual, Secondary Measuring Method Probe, Emissivity Adjustability Adjustable, Distance To Spot Ratio 20:1, Alert Type Light, Sound, Field of View Not Rated, Minimum Emissivity Setting 0.10, Maximum Emissivity Setting 1.00, Minimum Temperature Measured Degrees F -40 Degrees F, Maximum Temperature Measured Degrees F 1,202 Degrees F, Minimum Operating Temperature Degrees F -40 Degrees F, Maximum Operating Temperature Degrees F 1,200 Degrees F
