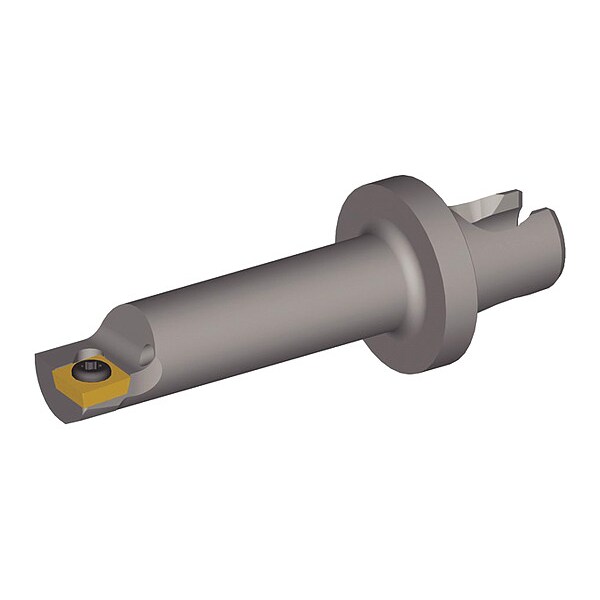

Indexable Cutting Head Unit, KM2016S1046SCXPRS, 60.29mm L, 80 Degrees Diamond Insert Shape
Mfr # KM2016S1046SCXPRS
Zoro # G3570364
product price: $247.99
/ea
Free Shipping & Returns
Key Features
Overall Length
60.29mm
Insert Shape
80 Degrees Diamond
ANSI Code
KM2016S1046SCXPRS
Shank Dia.
20.00mm
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
KM2016S1046SCXPRS
Zoro #
G3570364
UPC #
4059782084377
Country of Origin
United States
Dimensions
Overall Length
60.29mm
Shank Dia.
20.00mm
Insert Size
06T102 (21.20.5)
Cutting Height
0.25mm
Insert Cutting Edge Length
6.45mm
Min. Bore Dia.
11.10mm
Max. Bore Depth
41.00mm
Connection Size
KM2016
Details
Item
Indexable Cutting Head Unit
Insert Shape
80 Degrees Diamond
ANSI Code
KM2016S1046SCXPRS
Cutting Direction
Right Hand
Rake
0 Degrees Axial, 0 Degrees Radial
Number of Coolant Holes
1
Cutting Application
Boring
Compatible Hardware
Screw Clamp
Side Cutting Edge Angle
-5 Degrees
Insert Style
CP
Center to Cutting Tip
5.75mm
Insert Clearance Angle
11 Degrees
ISO Number
KM2016S1046SCXPRS
Insert Holding Type
Screw On
Coolant Fed
Coolant Through
Approach Angle
95 Degrees
Description
Indexable Cutting Head Unit, Insert Shape 80 Degrees Diamond, Overall Length 60.29mm, KM2016S1046SCXPRS, 95 Degrees , 5.75mm, Screw Clamp, Coolant Through, Boring, Right Hand
