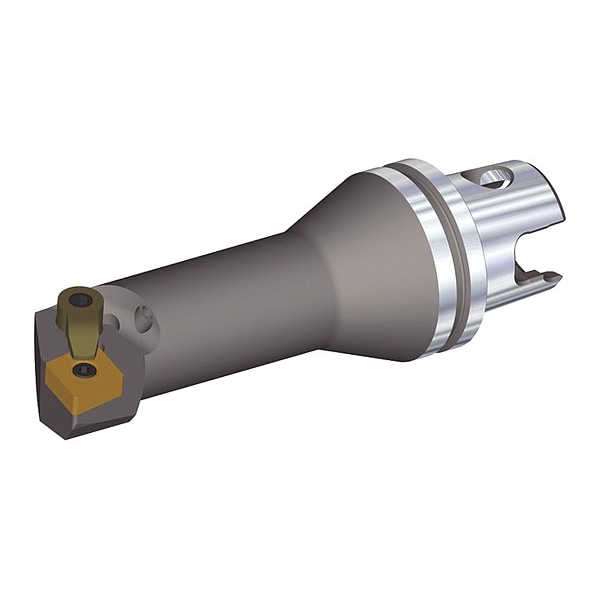

Indexable Cutting Head Unit, KM32TSS25EMCLNR12, 89.95mm L, 80 Degrees Diamond Insert Shape
Mfr # KM32TSS25EMCLNR12
Zoro # G3569262
product price: $585.99
/ea
Free Shipping & Returns
Key Features
Overall Length
89.95mm
Insert Shape
80 Degrees Diamond
ANSI Code
KM32TSS25EMCLNR12
Cutting Direction
Right Hand
Shank Dia.
32.00mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
KM32TSS25EMCLNR12
Zoro #
G3569262
UPC #
4059782125322
Country of Origin
United States
Dimensions
Overall Length
89.95mm
Shank Dia.
32.00mm
Insert Size
120408 (432)
Max. Bore Depth
58.00mm
Min. Bore Dia.
32.00mm
Insert Cutting Edge Length
12.90mm
Connection Size
KM32TS
Details
Item
Indexable Cutting Head Unit
Insert Shape
80 Degrees Diamond
ANSI Code
KM32TSS25EMCLNR12
Cutting Direction
Right Hand
Rake
12 Degrees Radial, 5 Degrees Axial
Insert Clearance Angle
0 Degrees
Side Cutting Edge Angle
-5 Degrees
Insert Holding Type
Clamp and Lock Pin
Cutting Application
Boring
Coolant Fed
Coolant Through
Approach Angle
95 Degrees
ISO Number
KM32TSS25EMCLNR12
Number of Coolant Holes
1
Standards
ISO 26622
Center to Cutting Tip
17.00mm
Insert Style
CN
Description
Indexable Cutting Head Unit, Insert Shape 80 Degrees Diamond, Overall Length 89.95mm, KM32TSS25EMCLNR12, 95 Degrees , 17.00mm, Coolant Through, Boring, Right Hand
