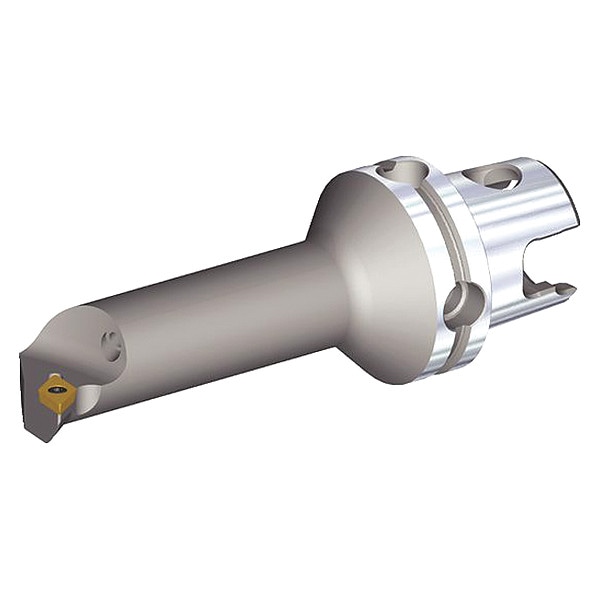

Indexable Cutting Head Unit, KM40TSS12ESDUPL07, 94.95mm L, 55 Degrees Diamond Insert Shape
Mfr # KM40TSS12ESDUPL07
Zoro # G3570820
product price: $557.99
/ea
Free Shipping & Returns
Key Features
Overall Length
94.95mm
Insert Shape
55 Degrees Diamond
ANSI Code
KM40TSS12ESDUPL07
Insert Size
070204 (21.51)
Rake
0 Degrees Axial, 0 Degrees Radial
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
KM40TSS12ESDUPL07
Zoro #
G3570820
UPC #
4059782028784
Country of Origin
United States
Dimensions
Overall Length
94.95mm
Insert Size
070204 (21.51)
Shank Dia.
40.00mm
Min. Bore Dia.
16.00mm
Insert Cutting Edge Length
7.75mm
Max. Bore Depth
42.21mm
Connection Size
KM40TS
Details
Item
Indexable Cutting Head Unit
Insert Shape
55 Degrees Diamond
ANSI Code
KM40TSS12ESDUPL07
Rake
0 Degrees Axial, 0 Degrees Radial
Cutting Direction
Left Hand
Insert Style
DP
Insert Clearance Angle
11 Degrees
ISO Number
KM40TSS12ESDUPL07
Insert Holding Type
Screw On
Side Cutting Edge Angle
-3 Degrees
Approach Angle
93 Degrees
Standards
ISO 26622
Cutting Application
Boring
Coolant Fed
Coolant Through
Number of Coolant Holes
1
Compatible Hardware
Screw Clamp
Center to Cutting Tip
9.00mm
Description
Indexable Cutting Head Unit, Insert Shape 55 Degrees Diamond, Overall Length 94.95mm, KM40TSS12ESDUPL07, 93 Degrees , 9.00mm, Screw Clamp, Coolant Through, Boring, Left Hand
