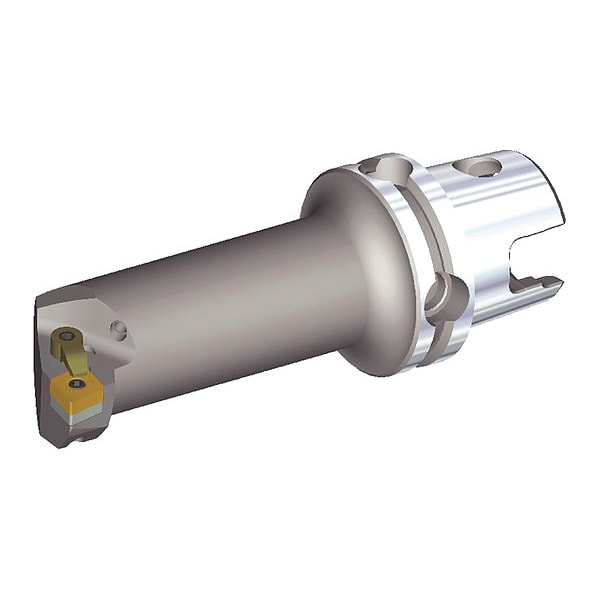

Indexable Cutting Head Unit, KM50TSS50LMCLNR12, 80 Degrees Diamond Insert Shape
Mfr # KM50TSS50LMCLNR12
Zoro # G3569944
product price: $677.99
/ea
Free Shipping & Returns
Key Features
Insert Shape
80 Degrees Diamond
ANSI Code
KM50TSS50LMCLNR12
Shank Dia.
50.00mm
Insert Size
120408 (432)
Rake
-5 Degrees Axial, -8 Degrees Radial
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
KM50TSS50LMCLNR12
Zoro #
G3569944
UPC #
4061779270052
Country of Origin
United States
Dimensions
Shank Dia.
50.00mm
Insert Size
120408 (432)
Insert Cutting Edge Length
12.90mm
Max. Bore Depth
140.00mm
Min. Bore Dia.
63.00mm
Connection Size
KM50TS
Details
Item
Indexable Cutting Head Unit
Insert Shape
80 Degrees Diamond
ANSI Code
KM50TSS50LMCLNR12
Rake
-5 Degrees Axial, -8 Degrees Radial
Cutting Direction
Right Hand
Insert Clearance Angle
0 Degrees
Cutting Application
Boring
Insert Holding Type
Clamp and Lock Pin
ISO Number
KM50TSS50LMCLNR12
Number of Coolant Holes
1
Center to Cutting Tip
35.00mm
Approach Angle
95 Degrees
Side Cutting Edge Angle
-5 Degrees
Coolant Fed
Coolant Through
Standards
ISO 26622
Insert Style
CN
Description
Indexable Cutting Head Unit, Insert Shape 80 Degrees Diamond, KM50TSS50LMCLNR12, 95 Degrees , 35.00mm, Coolant Through, Boring, Right Hand
