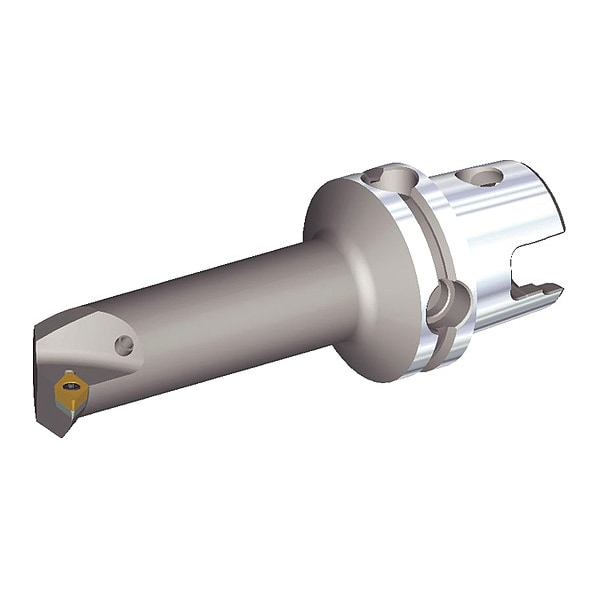

Indexable Cutting Head Unit, KM63TSS32LSDUCR11, 179.95mm L, 55 Degrees Diamond Insert Shape
Mfr # KM63TSS32LSDUCR11
Zoro # G3569402
product price: $831.99
/ea
Free Shipping & Returns
Key Features
Overall Length
179.95mm
Insert Shape
55 Degrees Diamond
ANSI Code
KM63TSS32LSDUCR11
Cutting Direction
Right Hand
Shank Dia.
63.00mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
KM63TSS32LSDUCR11
Zoro #
G3569402
UPC #
4059782055629
Country of Origin
United States
Dimensions
Overall Length
179.95mm
Shank Dia.
63.00mm
Insert Size
11T308 (32.52)
Max. Bore Depth
112.22mm
Insert Cutting Edge Length
11.63mm
Min. Bore Dia.
40.00mm
Connection Size
KM63TS
Details
Item
Indexable Cutting Head Unit
Insert Shape
55 Degrees Diamond
ANSI Code
KM63TSS32LSDUCR11
Cutting Direction
Right Hand
Rake
-3 Degrees Radial, 0 Degrees Axial
Side Cutting Edge Angle
-3 Degrees
Cutting Application
Boring
Number of Coolant Holes
1
Insert Clearance Angle
7 Degrees
Standards
ISO 26622
Center to Cutting Tip
22.00mm
Coolant Fed
Coolant Through
ISO Number
KM63TSS32LSDUCR11
Insert Holding Type
Screw On
Compatible Hardware
Screw Clamp
Approach Angle
93 Degrees
Insert Style
DC
Description
Indexable Cutting Head Unit, Insert Shape 55 Degrees Diamond, Overall Length 179.95mm, KM63TSS32LSDUCR11, 93 Degrees , 22.00mm, Screw Clamp, Coolant Through, Boring, Right Hand
