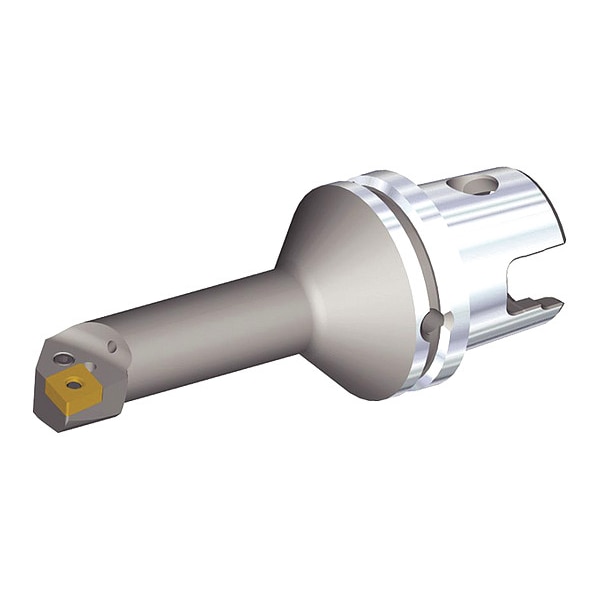

Indexable Cutting Head Unit, KM63XMZS25KPCLNR12Y, 164.95mm L, 80 Degrees Diamond Insert Shape
Mfr # KM63XMZS25KPCLNR12Y
Zoro # G3568809
product price: $924.99
/ea
Free Shipping & Returns
Key Features
Overall Length
164.95mm
Insert Shape
80 Degrees Diamond
ANSI Code
KM63XMZS25KPCLNR12Y
Rake
-12 Degrees Radial, -5 Degrees Axial
Shank Dia.
63.00mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
KM63XMZS25KPCLNR12Y
Zoro #
G3568809
UPC #
4059782086388
Country of Origin
Bulgaria
Dimensions
Overall Length
164.95mm
Shank Dia.
63.00mm
Insert Size
120408 (432)
Max. Bore Depth
87.50mm
Insert Cutting Edge Length
12.90mm
Min. Bore Dia.
32.00mm
Connection Size
KM63XMZ
Details
Item
Indexable Cutting Head Unit
Insert Shape
80 Degrees Diamond
ANSI Code
KM63XMZS25KPCLNR12Y
Rake
-12 Degrees Radial, -5 Degrees Axial
Cutting Direction
Right Hand
Number of Coolant Holes
1
Center to Cutting Tip
17.00mm
ISO Number
KM63XMZS25KPCLNR12Y
Insert Style
CN
Insert Holding Type
P-Clamping (Lever Lock or Lock Pin)
Coolant Fed
Coolant Through
Side Cutting Edge Angle
-5 Degrees
Approach Angle
95 Degrees
Insert Clearance Angle
0 Degrees
Cutting Application
Boring
Description
Indexable Cutting Head Unit, Insert Shape 80 Degrees Diamond, Overall Length 164.95mm, KM63XMZS25KPCLNR12Y, 95 Degrees , 17.00mm, Coolant Through, Boring, Right Hand
