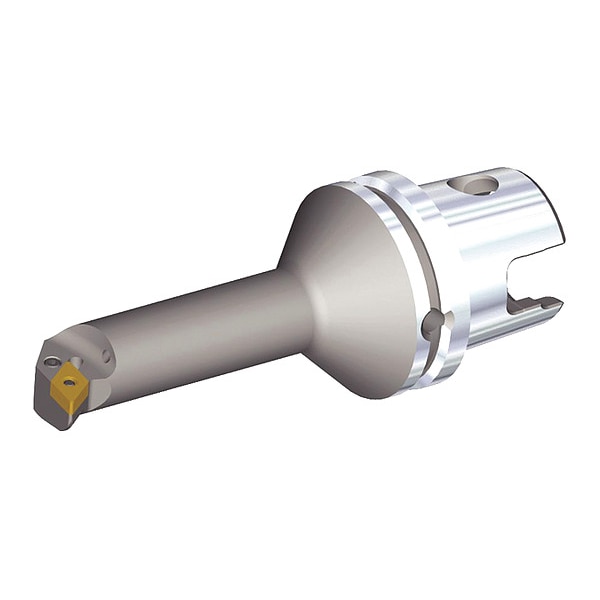

Indexable Cutting Head Unit, KM63XMZS25KPDUNLF11Y, 164.95mm L, 55 Degrees Diamond Insert Shape
Mfr # KM63XMZS25KPDUNLF11Y
Zoro # G3568739
product price: $896.99
/ea
Free Shipping & Returns
Key Features
Overall Length
164.95mm
Insert Shape
55 Degrees Diamond
ANSI Code
KM63XMZS25KPDUNLF11Y
Insert Size
110408 (332)
Shank Dia.
63.00mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
KM63XMZS25KPDUNLF11Y
Zoro #
G3568739
UPC #
4059782094635
Country of Origin
Germany
Dimensions
Overall Length
164.95mm
Insert Size
110408 (332)
Shank Dia.
63.00mm
Insert Cutting Edge Length
11.63mm
Min. Bore Dia.
32.00mm
Max. Bore Depth
87.50mm
Connection Size
KM63XMZ
Details
Item
Indexable Cutting Head Unit
Insert Shape
55 Degrees Diamond
ANSI Code
KM63XMZS25KPDUNLF11Y
Rake
-12 Degrees Radial, -5 Degrees Axial
Cutting Direction
Left Hand
ISO Number
KM63XMZS25KPDUNLF11Y
Insert Holding Type
P-Clamping (Lever Lock or Lock Pin)
Number of Coolant Holes
1
Cutting Application
Boring
Insert Style
DN
Center to Cutting Tip
17.00mm
Side Cutting Edge Angle
-3 Degrees
Coolant Fed
Coolant Through
Approach Angle
93 Degrees
Insert Clearance Angle
0 Degrees
Description
Indexable Cutting Head Unit, Insert Shape 55 Degrees Diamond, Overall Length 164.95mm, KM63XMZS25KPDUNLF11Y, 93 Degrees , 17.00mm, Coolant Through, Boring, Left Hand
