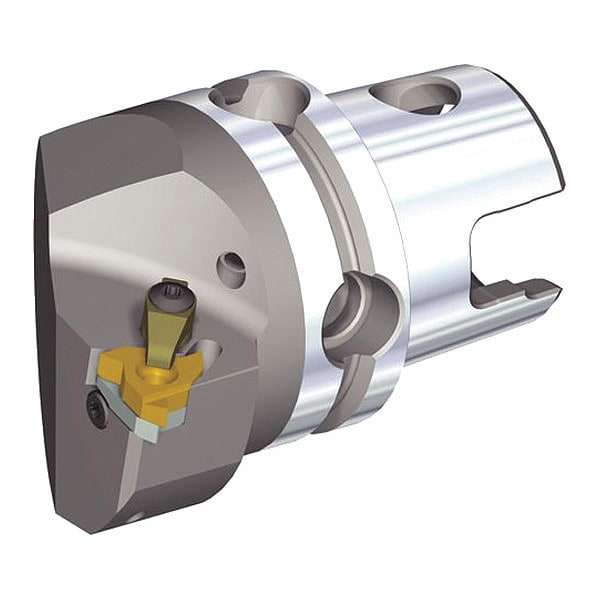

Indexable Thread Cutting Unit Head, KM40TSLSEL16N, 64.95mm L, High Speed Steel
Mfr # KM40TSLSEL16N
Zoro # G3753959
product price: $408.99
/ea
Free Shipping & Returns
Key Features
Overall Length
64.95mm
Shank Material
High Speed Steel
Insert Shape
Triangle
Rake
-15 Degrees Radial, -1.500 Degrees Axial
Shank Dia.
40.00mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
KM40TSLSEL16N
Zoro #
G3753959
UPC #
4059782026148
Country of Origin
United States
Dimensions
Overall Length
64.95mm
Shank Dia.
40.00mm
Insert Size
16
Min. Bore Dia.
54.00mm
Cutting Height
0.00mm
Max. Bore Depth
40.00mm
Details
Item
Indexable Thread Cutting Unit Head
Shank Material
High Speed Steel
Insert Shape
Triangle
ANSI Code
KM40TSLSEL16N
Rake
-15 Degrees Radial, -1.500 Degrees Axial
Cutting Direction
Left Hand
Type
Screw Clamping
Left/Right Hand
Left Hand
Insert Holding Type
Screw
ISO Number
KM40TSLSEL16N
Coolant Fed
Coolant Through
Cutting Application
Threading, Turning
Number of Coolant Holes
1
Toolholder Style
LSEL
Insert Style
LT16NL
Standards
ISO 26622
Compatible Hardware
CKC3 Clamp Assembly, LT16NL Gage Insert, SMYE3 Shim, SSA3T Insert Screw, SSY3T Shim Screw
Center to Cutting Tip
27.00mm
Description
Overall Length 64.95mm, Left Hand, Insert Holding Type Screw, Min. Bore Dia. 54.00mm
