  11. Controller, 3 Relay, 6 Outputs, Occ Sensor

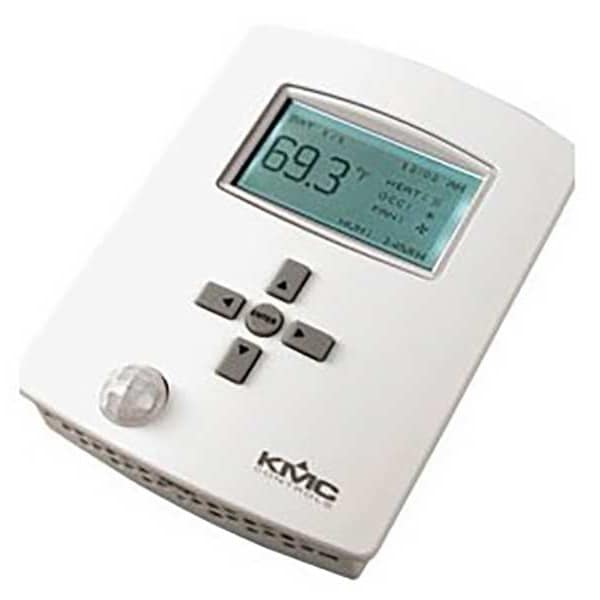

Kmc Controls Controller, 3 Relay, 6 Outputs, Occ Sensor BAC-121036CW - main

Controller, 3 Relay, 6 Outputs, Occ Sensor

  • Mfr # BAC-121036CW

  • Zoro # G3531726

product price: $720.99
/ea
Free Shipping & Returns

Key Features

Type
3 Relay And 6 Universal Outputs With Occupancy Sensor
Voltage
24V AC
Includes
Backplate
Connection
Wire Clamp 14-22 AWG
For Use With
AHU, RTU, Heat Pump, Fancoil Unit
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BAC-121036CW
Zoro #
G3531726
UPC #
-
Country of Origin
United States

Dimensions

Dimensions
5-1/2 x 4-3/16 x 1-1/8
Overall Height
5 1/2 in
Sensor Length
30 ft
Overall Width
4 3/16 in
Overall Depth
1 1/8 in
Screen Height
1 1/8 in

Details

Type
3 Relay And 6 Universal Outputs With Occupancy Sensor
Voltage
24V AC
Includes
Backplate
Connection
Wire Clamp 14-22 AWG
For Use With
AHU, RTU, Heat Pump, Fancoil Unit
Inputs
3
Outputs
6
Item
BACnet Controller
Agency Compliance
UL
Display
64 x 128 Pixel Dot Matrix LCD
Features
Advanced Application Library
Control Type
Push Button
Maximum Operating Humidity
95 %
Control Output
Floating Fan Coil and Zoning, Two RTU/Heat Pump with Optional Economizer
Standards
ANSI/ASHRAE BACnet Standard 135-2008, BACnet Testing Laboratory listed, FCC Class A, Part 15, Subpart B and complies with Canadian ICES-003 Class B, SASO PCP Registration KSA R-103260, UL 916 Energy Management Equipment
Number of Poles
1
Temperature Sensitivity
+/- 0.9 Degrees F
Mounting Direction
Horizontal
Remote Control Functions
Temperature Control
Occupancy Sensor
Includes Onboard Occupancy Sensor
Amperage
1 A
Lead Wire Gauge
14 ga, 22 ga
Number of Relay Inputs
0
Thermostat Type
Low Voltage
Number of Cooling Stages - Conventional System
1
Housing Material
Plastic
Number of Relay Inputs/Outputs
0/3
Display Type
Digital
Backlit Screen
Yes
Minimum Operating Temperature
32 Degrees F
Application
Heat or Cool
Operating Temperature Range
32 Degrees F to 125 Degrees F
Number of Heating Stages - Heat Pump System
1
Temperature Scale
Fahrenheit/Celsius
Enclosure Color
White
Number of Pipes
2, 4
Minimum Operating Humidity
0 %
Electrical Connection Type
Hardwired
Housing Type
Flame Retardent Housing
Dehumidification Control
No
Number of Heating Stages - Conventional System
1
Backlit Type
Motion Activated
Switch Type
SPST
Housing Color
White
Wireless
Hardwired
Humidification Control
No
Maximum Operating Temperature
125 Degrees F
Number of Switches
1
Sensor Location
Remote
Number of Cooling Stages - Heat Pump System
1
Terminal Designations
-A;+B;AO6;AO7;AO8;BO5;COM;DAT;FAN-H;FAN-L;FAN-M;GND;RBO4;RS;WST
Number of Relay Outputs
3
Sensor Type
Thermistor, Type II
Humidification/Dehumidification Control
No, No
Contact Rating
24V AC
Dual Transformer Compatible
Yes
Compatible System Type
Air Handling Units, Fan Coil Units
Network Protocol Compatibility
BACnet MS/TP
Temperature Adjustment
Floating

Description

BACnet Controller, 3 Relay And 6 Universal Outputs With Occupancy Sensor, Voltage 24VAC, Inputs 3, Outputs 6, Display 64 x 128 Pixel Dot Matrix LCD, Dimensions 5-1/2 x 4-3/16 x 1-1/8, Includes Removable Backplate, For Use With AHU, RTU, Heat Pump, Fancoil Unit
