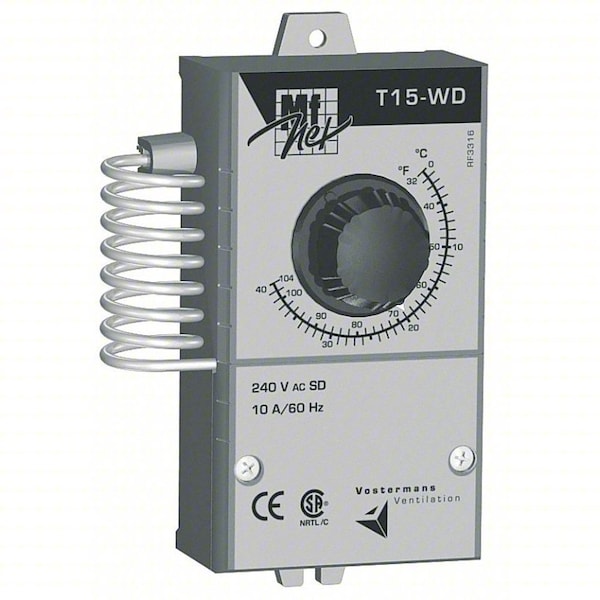

Line Voltage Mechanical Thermostat, 32 to 105F, 120 to 240V AC, 1C, 1H

  • Mfr # T15-WD

  • Zoro # G2529721

product price:  $72.69
/ea

Key Features

Switch Action
Spring
Switch Type
SPDT
Number of Cooling Stages
1
Number of Heating Stages
1
Temperature Control Range
32 to 105 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T15-WD
Zoro #
G2529721
UPC #
-
Country of Origin
Netherlands

Dimensions

Overall Height
65 mm
Overall Depth
155 mm
Overall Width
100 mm

Details

Switch Action
Spring
Switch Type
SPDT
Number of Cooling Stages
1
Number of Heating Stages
1
Temperature Control Range
32 to 105 Degrees F
Voltage
120 to 240V AC
Item
Line Voltage Mechanical Thermostat
Inductive Amps @ 240V
10 A
Contact Rating Resistive @ 240V
10 A
Enclosure Type
Plastic, Non-sealed
Standards
CSA Certified
Sensor Type
Gas Expansion
Resistive Amps @ 208VAC
10 A
Number of Switches
1
Inductive Amps @ 120V
10 A
Contact Rating Resistive @ 120V
10 A
Contact Rating Resistive @ 277V
10 A
Number of Relay Outputs
1
Number of Relay Inputs
1
Thermostat Type
Line Voltage
For Use With
Fans with a maximum Amp draw of 10 Amps
Features
Sealed Casing Keeps Out Water and Dust, Plastic Case Won't Rust or Corrode, 1 Full yr. Guarantee, segregated high voltage and low voltage components
Number of Poles
1
Housing Material
Plastic
Remote Control Functions
No
Amperage
16 A
Temperature Differential
2 Degrees F
Contact Rating
250V
Programming Capability
Not Programmable
Enclosure Color
Gray
Full Load Amps @ 120V AC
10 A
Full Load Amps @ 240V AC
10 A
Housing Type
Plastic Non-Sealed

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPDT, Thermostat Control Range 32 Degrees to 105 Degrees F, Thermostat Voltage 120 to 240V AC, Full Load Amps @ 120VAC 10 A, Full Load Amps @ 240VAC 10 A, Thermostat Programmable No, Remote Sensing Capability No, Thermostat Heating/Cooling Heating/Cooling, Remote Sensing Bulb Included No, Switch Action Spring, Number of Switches 1, Differential 2 Degrees F, Height 6 in, Width 4 in, Depth 2 1/2 in, Sensor Type Gas Expansion, Color Gray
