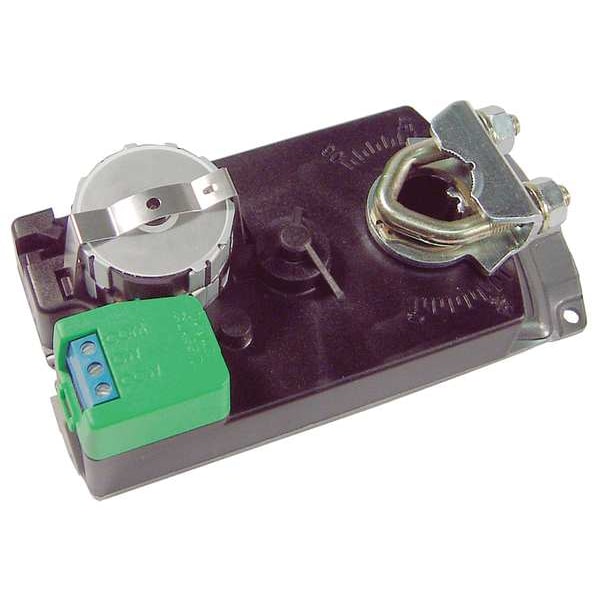

Electric Actuator, -22 to 131F

KMC CONTROLS| Zoro #: G1078095| Mfr #: MEP-4003

$73.95 /ea

This item ships free. Details.Standard ground shipping.
Details:
Signal Type: Floating
Spring Return: No
For Use With: Dampers or Valves that Require Up to 40 in.-lb. of Torque
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G1078095 Mfr #: MEP-4003
Signal Type: FloatingSpring Return: No
For Use With: Dampers or Valves that Require Up to 40 in.-lb. of TorqueTorque: 40 in.-lb.
Includes: Non-Rotation BracketHeight: 1-7/8"
Depth: 5-3/8"Power Consumption: 2VA
Ambient Temp. Range: -22 Degrees to 131 Degrees FElectrical Connections: 22-14 AWG Wire Clamp
Width: 2-5/8"Voltage: 24VAC/DC
Shaft Type: 1/4" to 5/8" Round or 1/4 "to 7/16" SquareTiming: 90 sec.
Stroke Deg.: 0 to 95Mounting Type: Direct Mount
Country of Origin (subject to change): United States

Description

Tri-State Actuator, Type Non-Failsafe, Shaft Type 1/4 to 5/8 In Round or 1/4 to 7/16 In Square, Torque (In.-Lbs.) 40, Stroke Deg. 0-95, Height (In.) 1-7/8, Width (In.) 2-5/8, Depth (In.) 5-3/8, Signal Type Floating, Ambient Temp. Range (F) -22-131, Timing (Sec.) 90-108, Voltage 24, For Use With Dampers or Valves That Require Up to 40in-lbs of Torque
