- MFR #
- KC301L4015/DSM3511LP
- Zoro #
- G110865190
- UPC #
- -
- Country of Origin
- Switzerland
- Item

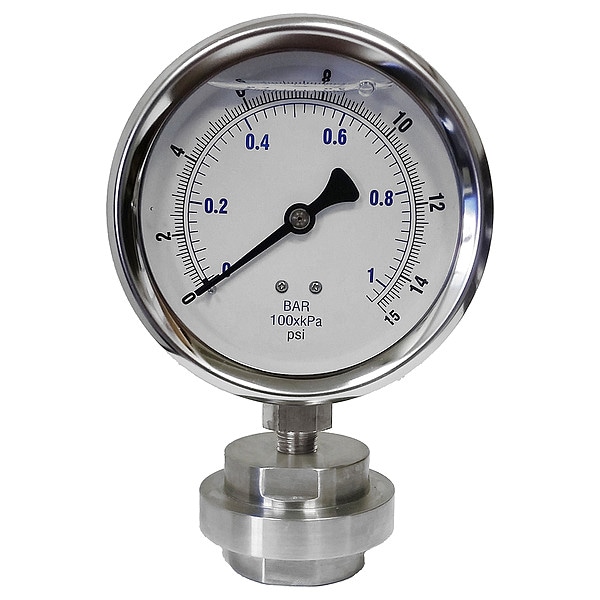

- Pressure Gauge
- Accuracy
- +/-1.00%
- Process Connection Location
- Bottom
- Process Connection Type
- NPT
- Application
- Chemical Feed Systems, Corrosive Application, Heavy-Duty Industrial, Hydraulics, Pneumatics, Pumps, R/O Systems
- Gauge Case Material
- 304 Stainless Steel
- Series
- KC301
- Lens Material
- Polycarbonate
- Primary Pressure Range
- 0 to 3,000
- Primary Scale Units
- psi
- IP/NEMA Rating
- NEMA 4X
- Liquid-Filled Case
- Yes
- Panel-Mountable
- No
- Seal Fill Liquid
- Mineral Oil
- Bezel Mounting Type
- Crimped
- Pointer Material
- Aluminum
- Seal Compatible Process Media
- Air or Liquid Compatible with 316SS
- Compatible Process Media
- Thick or Corrosive Media Compatible with 316 Stainless Steel
- Pointer Color
- Black
- Diaphragm Seal Type
- Welded
- Accuracy Grade
- ASME B40.100
- Seal Lower Housing Material
- 316 Stainless Steel
- Case Material
- 304 Stainless Steel
- Scale Type
- Dual
- Pressure Range Type
- Pressure
- Seal Diaphragm Material
- 316 Stainless Steel
- Gauge Case Liquid
- Glycerin
- Clog Resistant
- Yes
- Process Connection Gender
- Female
- Freeze Resistant Movement
- No
- Pressure Gauge Type
- Industrial Pressure Gauge with Diaphragm Seal
- Field Fillable
- Yes
- Socket Material
- 316 Stainless Steel
- Includes Calibration Certificate
- NIST with Data
- Cleaned for Oxygen Service
- No
- Sensor Material
- 316 Stainless Steel
- Diaphragm Seal Material
- 316 Stainless Steel
- NEMA Enclosure Rating
- 4X
- Seal Process Media Temperature - Maximum
- 328 Degrees F
- Seal Working Pressure - Maximum
- 19.5 psi
- Secondary Scale Pressure Measurement - Minimum
- 0 bar
- Secondary Scale Pressure Measurement - Maximum
- 1 bar
- Primary Scale Pressure Measurement - Maximum
- 15 psi
- Primary Scale Pressure Measurement - Minimum
- 0 psi
- Resistance Properties
- Clog Resistant
- Case Liquid
- Glycerin
- Seal Process Media Temperature - Minimum
- 0 Degrees F
- Includes Acid Leak Detection
- No Acid Leak Detection Included
