Shop KOHLER

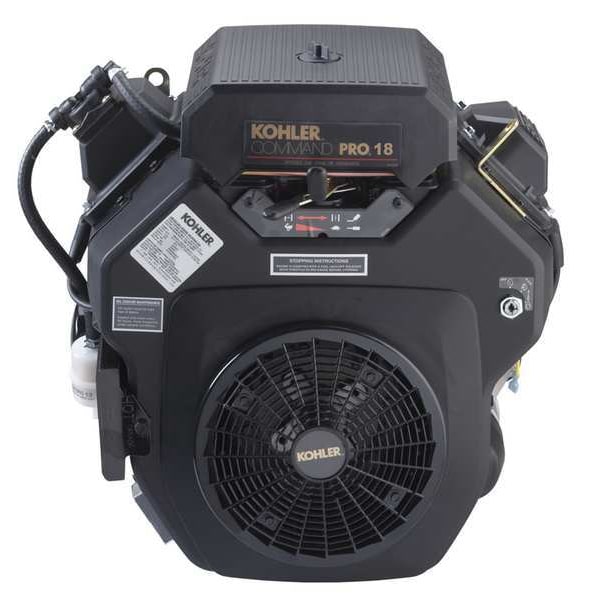

Gasoline Engine, 4 Cycle, 19 HP, Elec Start

  • Mfr # PA-CH620-3191
  • Zoro # G6908553
product price:
$
2,622.99
/ea
Free Shipping & Returns

Key Features

Gross Torque
35 lb-ft
Shaft Orientation
Horizontal
Shaft Dia. (In.)
1-1/8
Shaft Length (In.)
4 in
Shaft Configuration
Drilled and Tapped 1 1/2" Deep, 7/16 20 UNF
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
PA-CH620-3191
Zoro #
G6908553
UPC #
885612238184
Country of Origin
United States
HP
19 hp
Gross Torque
35 lb-ft
Shaft Orientation
Horizontal
Shaft Configuration
Drilled and Tapped 1 1/2" Deep, 7/16 20 UNF
Overall H Facing PTO (In.)
20.7 in
Includes
Aluminum Block, Choke, Closed Breather System, Key Switch, Throttle
Function
Aerial Lift, Auger, Cable Layer, Compressor, Concrete Saw, Curber, Fire Pump, Goaring Equipment, Golf Course Implements, Hydraulic Power Pack, Material Handling Power Buggy, Mixer, Mud Pump, Roller, Signal Board, Sprayer
Bearings
Sleeve
Low Oil Shut Down
Yes
4 Cycle Engine
Y
Rotation
CCW-SE
Shaft Key (In.)
1/4 in
Features
High Efficiency, Heavy Duty Air Filters Provide Protection from Debris and Ensure Longer Service Intervals
Start
Electric
Air Filter
Pleated Paper
PTO Shaft Key (In.)
0.25 in
Design
Overhead Valve
Gear Box
Internal
Overall W Facing PTO (In.)
18.7 in
RPM
3,600 RPM
Engine RPM
3,600 RPM
Application
Aerial Lift, Auger, Boaring Eq., Cable Layer, Compressor, Concrete Saw, Curber, Fire Pump, Golf Course Implements, Hydraulic Power Pack, Material Handling Power Buggy, Mixer, Mud Pump, Roller, Signal Board, Sprayer
Starter Type
Electric
Item
Gasoline Engine
Cylinders
2
Maintenance Frequency
100 Hour Air Filter and Change Oil, 200 Hour Air and Oil Filter
Ignition Type
Electronic
Muffler
No
Air Cleaner Type
Dual Element
Recommended Use
Industrial/Construction
Agency Compliance
EPA
Standards
CARB Phase III, EPA Phase III, EU Stage V
Engine Displacement
673.51 cc
Number of Cylinders
2
Maximum Speed
3,600 RPM
Shaft Key
1/4 in
Overall W Facing PTO
18 11/16 in
Horsepower
19 hp
Engine Series
CH620 Series
Engine Cycle
4-Cycle
Engine Brand
Kohler
Overall H Facing PTO
20 11/16 in
CARB Compliant
CARB Compliant
Start Type
Electric

Description

Gasoline Engine, Engine Series CH620 Series, Gross Torque 35 lb-ft, Horsepower 19 hp, Shaft Orientation Horizontal, Shaft Configuration Drilled and Tapped 1 1/2 In. Deep, 7/16 20 UNF, Shaft Diameter 1 1/8 in, Shaft Length 4 in, Start Type Electric, Maximum Speed 3,600 RPM, Muffler No, CARB Compliant CARB Compliant, Engine Brand Kohler, Engine Displacement 673.51 cc, Engine Cycle 4-Cycle, Overall Depth 17 11/16 in, Overall Depth Facing PTO 19 3/16 in, Overall H Facing PTO 20 11/16 in
