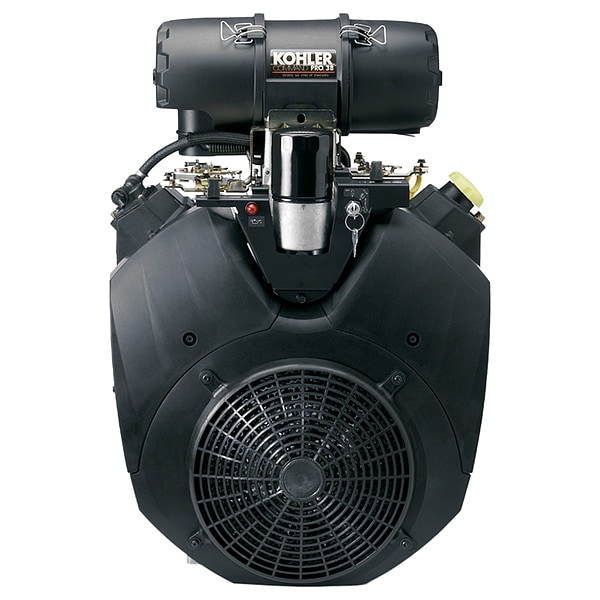

Gasoline Engine, 4 Cycle, 35 HP

Mfr # PA-CH980-3000
Zoro # G6538691

5,489.99

Additional $195.00 delivery surcharge applies per item.

Key Features

Gross Torque

54.5 lb-ft

Shaft Orientation

Horizontal

Shaft Dia. (In.)

1-7/16

Shaft Length (In.)

4 29/64 in

Maintenance Frequency

150 Hour Oil and Oil Filter, 300 Hour Oil and Oil Filter, Air Cleaner Element

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: PA-CH980-3000
Zoro #: G6538691
UPC #: 885612418029
Country of Origin: United States

Dimensions

Shaft Dia. (In.): 1-7/16
Shaft Length (In.): 4 29/64 in
PTO Shaft Length (In.): 4.46 in
Overall Height (In.): 25 in
PTO Shaft Dia. (In.): 1.437 in
PTO Shaft Height (In.): 6.125 in
Overall Width (In.): 17.38 in
Shaft Height (In.): 6.125 in
Overall Depth Facing PTO (In.): 18.5 in
Overall Depth (In.): 18.5 in
Overall Height: 27 1/2 in
Overall Width: 15 5/16 in
Shaft Height: 6 1/8 in
Overall Depth: 19 in
PTO Shaft Length: 4 7/16 in
PTO Shaft Height: 6 1/8 in
Shaft Diameter: 1 7/16 in
Overall Depth Facing PTO: 18 1/2 in
Shaft Length: 4 7/16 in
PTO Shaft Diameter: 1 7/16 in
Fits Chest Size: High Efficiency, Heavy Duty Air Filters Provide Protection from Debris and Ensure Longer Service Intervals

Details

HP: 35 hp
Gross Torque: 54.5 lb-ft
Shaft Orientation: Horizontal
Maintenance Frequency: 150 Hour Oil and Oil Filter, 300 Hour Oil and Oil Filter, Air Cleaner Element
Design: Overhead Valve
Features: High Efficiency, Heavy Duty Air Filters Provide Protection from Debris and Ensure Longer Service Intervals
Overall H Facing PTO (In.): 25 in
Overall W Facing PTO (In.): 17.38 in
Shaft Key (In.): 3/8 in
Rotation: CCW-SE
PTO Shaft Key (In.): 0.375 in
Function: Aerial Lift, Boaring Equipment, Cable Layer, Compressor, Concrete Saw, Curber, Fire Pump, Golf Course Implements, Hydraulic Power Pack, Mixer, Pump Mud, Pump Other, Roller, Signal Board, Welder
Recommended Use: Industrial/Construction
Engine RPM: 3,600 RPM
Start: Electric
4 Cycle Engine: Y
RPM: 3,600 RPM
Includes: Cast Iron Cylinder Liners, Full Pressure Lubrication, Oil Cooler, PTO Thrust Bearing
Air Cleaner Type: Heavy Duty Canister System
Air Filter: Pleated Paper
Shaft Configuration: Drilled and Tapped 1.5" Deep, 5/8"-18 UNF
Agency Compliance: EPA
Gear Box: Internal
Low Oil Shut Down: Yes
Cylinders: 2
Item: Gasoline Engine
Starter Type: Electric
Bearings: Sleeve
Application: Aerial Lift, Boaring Equipment,Cable Layer, Compressor, Concrete Saw,Curber, Fire Pump,Hydraulic Power Pack, Golf Course Implements, Mixer,Pump Mud, Pump Other,Roller, Signal Board,Welder
Muffler: No
Ignition Type: Electronic
Standards: EPA Phase III
Horsepower: 35 hp
Shaft Key: 3/8 in
Engine Displacement: 999.61 cc
Overall H Facing PTO: 25 in
Number of Cylinders: 2
Engine Cycle: 4-Cycle
Overall W Facing PTO: 17 3/8 in
CARB Compliant: CARB Non-Compliant
Start Type: Electric
Engine Brand: Kohler
Maximum Speed: 3,600 RPM
Engine Series: CH980 Series

Description

Gasoline Engine, Engine Series CH980 Series, Gross Torque 54.5 lb-ft, Horsepower 35 hp, Shaft Orientation Horizontal, Shaft Configuration Drilled and Tapped 1.5 In. Deep, 5/8 In.-18 UNF, Shaft Diameter 1 7/16 in, Shaft Length 4 7/16 in, Start Type Electric, Maximum Speed 3,600 RPM, Muffler No, CARB Compliant CARB Non-Compliant, Engine Brand Kohler, Engine Displacement 999.61 cc, Engine Cycle 4-Cycle, Overall Depth 19 in, Overall Depth Facing PTO 18 1/2 in, Overall H Facing PTO 25 in

Restrictions

Hazardous material

This item has been restricted from sale in the following states: CA
