Koyo

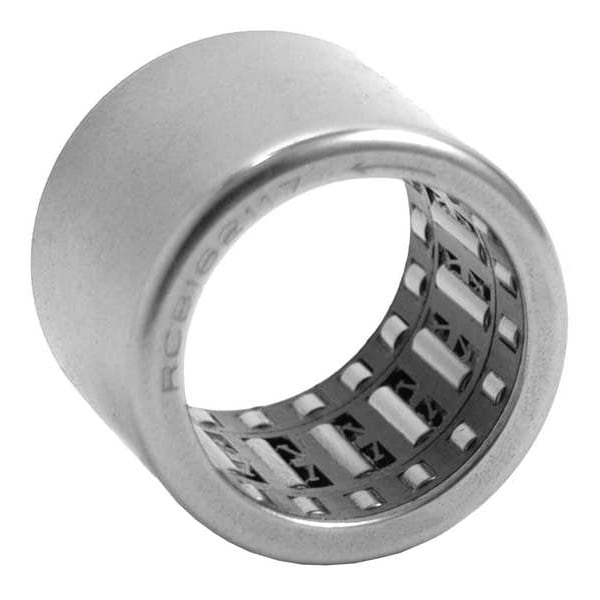

Needle Roller Brg, 81214, 1/2in Bore, Open

product price: $20.29
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Drawn Cup
  • Bore Dia. (In.) 0.5 in
  • Bore Dia. (mm) 12.7 mm
  • Outside Dia. (In.) 0.75 in
  • Outside Dia. (mm) 19.05 mm
See all product information

Product Information

Dimensions

Bore Dia. (In.) 0.5 in
Bore Dia. (mm) 12.7 mm
Outside Dia. (In.) 0.75 in
Outside Dia. (mm) 19.05 mm
Width (In.) 0.875 in
Width (mm) 22.23 mm
Bore Diameter 1/2 in
Outside Diameter 3/4 in
Overall Width 0.875 in

Details

Item Needle Roller Bearing
Type Drawn Cup
Dynamic Load Capacity (Lb.) 1,600 lb
Static Load Capacity (N) 6,490 N
Static Load Capacity (Lb.) 1,460 lb
Cage Material Thermoplastic
Torque 78.3 lb-in
Max. RPM 17,000 RPM
Dynamic Load Capacity (N) 7,120 N
Number of Rows Three
Static Radial Load Capacity 1,460 lbf
Bearing Design RCB
Maximum Torque 78.3 in-lb
Lubrication Openings Not Applicale
Application Automobile Field, Drive-Lines, Engine, Industrial Machinery Field, Steering Systems, Transmission, Wind Power Generation
Ring Material Grade SUJ 2
Closure Open
Cage Material Grade Fiberglass Reinforced Nylon
Lubricant Material Grease, Oil
Minimum Temperature -22 Degrees F
Ring Material Alloy Steel
Full Complement No
Roller Material Grade SUJ 2
System of Measurement Inch
Roller Material Alloy Steel
Bearing Industry Number 81214
Maximum Speed 17,000 RPM
Dynamic Radial Load Capacity 1,600 lbf
Maximum Temperature 200 Degrees F
Needle Bearing Type Drawn Cup Roller Clutch

Description

Needle Roller Bearing, Bearing Industry Number 81214, Bearing Design RCB, Bore Diameter 1/2 in, Cage Material Thermoplastic, Closure Open, Full Complement No, Lubricant Material Grease, Oil, Maximum Speed 17,000 RPM, Maximum Temperature 200 Degrees F, Minimum Temperature -22 Degrees F, Needle Bearing Type Drawn Cup Roller Clutch, Number of Rows Three, Outside Diameter 3/4 in, Overall Width 0.875 in, Ring Material Alloy Steel, Roller Material Alloy Steel, Seal Type Not Applicable
