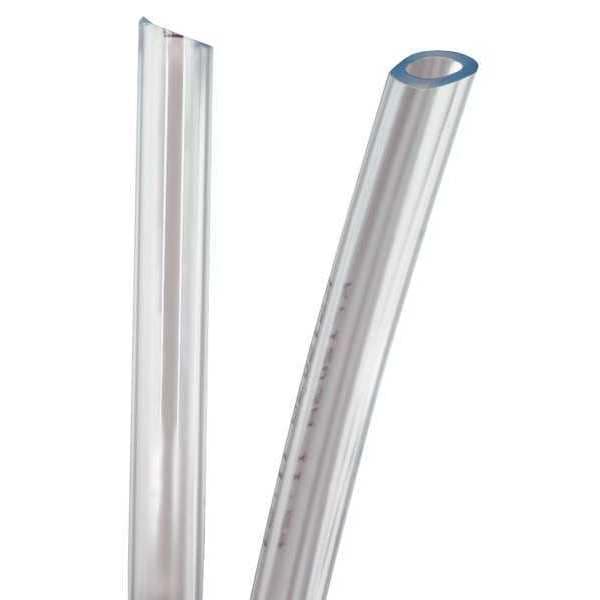

Kuriyama Tubing, 1-1/4 I.D., 100 ft., Clear, Flxible K010-2024 - main

Tubing, 1-1/4 I.D., 100 ft., Clear, Flxible

  • Mfr # K010-2024

  • Zoro # G2512903

product price: $229.99
/ea
Free Shipping & Returns

Key Features

Tube Material
PVC
Tube Hardness
Shore A: 73
Inside Dia.
1 1/4 in
Outside Dia.
1 1/2 in
Wall Thickness
0.13 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K010-2024
Zoro #
G2512903
UPC #
-
Country of Origin
Japan

Dimensions

Inside Dia.
1 1/4 in
Outside Dia.
1 1/2 in
Wall Thickness
0.13 in
Tube Length
100 ft
Tube Bend Radius
1/2 in
Inside Diameter
1 1/4 in
Overall Length
50 ft
Outside Diameter
1 1/2 in
Bend Radius
1/2 in

Details

Tube Material
PVC
Tube Hardness
Shore A: 73
Max. Pressure
20 psi @ 70 Degrees F
Tube Color
Clear
Item
Tubing
Flexibility
Flexible
Application
Air, Water
Vacuum Rating
Not Rated
SAE or Metric
SAE
Tensile Strength
2,200 psi
Standards
3-A, FDA, USDA, NSF, NSF 51, RoHS Compliant, UL, USP Class VI
Temp. Range
25 Degrees to 150 Degrees F
Material
PVC
Features
Non Toxic Blue Tint to Enhance Clarity, Self-Extinguishing
Color
Clear
Reinforcement
Not Reinforced
Maximum Operating Pressure
20 psi @ 70 Degrees F
System of Measurement
Inch
Jacket Material
No Jacket
Material Trade Name
Klearon
Tube Form
Coil
Vacuum Rated
Not Rated for Vacuum
Food Application
Food and Beverage
Stripe Color
No Stripe
For Fluid Type
Acids, Chemicals, Deionized Water
Does Not Contain
Phthalates
Maximum Operating Temperature
150 Degrees F
Clarity
Clear
Peristaltic Pump Compatible
No
Resistance Properties
Chemical Resistant
Flow Application
Air Conditioning Drainage, Air Lines, Beverage Dispensing Units, Bottling Plants, Deionized Water Systems, Food and Beverage, High Efficiency Furnace Drainage, Ice Making Machines, Laboratories, Printing Press Equipment, Refrigeration Drainage, Transfer of Weak Chemicals and Acids, Water Distillation Lines
Minimum Operating Temperature
25 Degrees F
Fitting Compatibility
Barbed
Hardness
Shore A 73
Autoclavable
No

Description

Tubing, Application Air, Water, Color Clear, Food Application Food and Beverage, Hardness Shore A 73, Inside Diameter 1 1/4 in, Jacket Material No Jacket, Material PVC, Material Trade Name Klearon, Maximum Operating Pressure 20 psi @ 70 Degrees F, Maximum Operating Temperature 150 Degrees F, Outside Diameter 1 1/2 in, Overall Length 50 ft, Peristaltic Pump Compatible No, PEX Type Not Applicable, Resistance Properties Chemical Resistant, Reinforcement Not Reinforced
