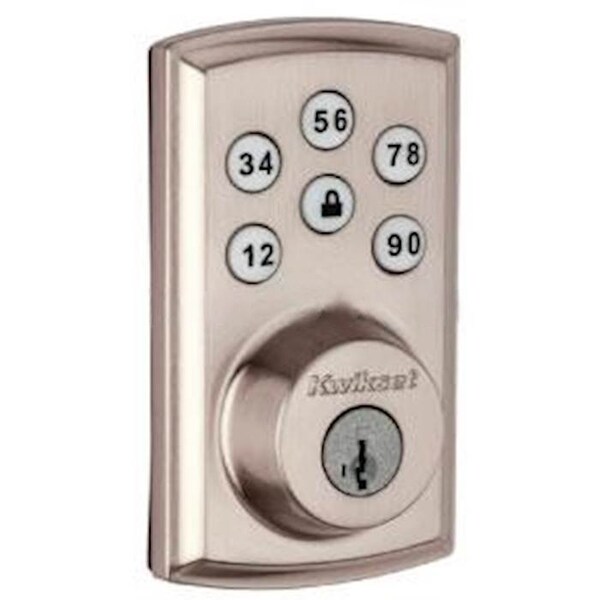

SmartCode 888 Touchpad Electronic Deadbolt (Discontinued)

SmartKey with Z-Wave 500 Chipset, Round Corner Adjustable Latch and Round Corner Strike in Satin Nickel
888 SmartCodeElectronic Deadbolt with Z-Wave TechnologyGet control over your security. Smart locks help you look after your homeeven when you're away.Convenience:

• 5-Button keypad with one-touch locking
• Motorized deadbolt enables true remote locking & unlocking
• Tapered deadbolt design permits misaligned doors to lock & unlock with ease
• Features SmartKey Re-Key Technology with BumpGuard Protection

Customizable Features:

• Auto re-lock 30 seconds after unlocking - ON/OFF
• Interior LED locked/unlocked status - ON/OFF
• Audible feedback - ON/OFF

Security:

• 30 user access code capacity, 48 digit code length
• MasterCode feature for improved user code management
• 128-bit Advanced Encryption Standard AES communication
• Meets BHMA Grade 3 deadbolt operational and security standards
• Drill and pick resistant backup keyway with BumpGuard protection
• Incorrect code protection with audible alarm
• Audit trail logging stores access history in the lock memory
• Date/time scheduled user access control

Wireless Communication:

• Z-Wave 500 wireless technology
• RF Operation: 908.42 MHz US
• Range: Tyical 160ft or more line of sight

Electronic Compliance:

• Z-Wave Plus
• FCC Part 15
• Industry Canada
• Australia-New Zealand

Electrical Specifications: Input Power:

• 6V
• 4 x AA alkaline batteries

Mechanical Specifications: Door Prep:

• 2 1/8 diameter face hole & 1 diameter latch hole

Backset:

• Adjustable 2 3/8 or 2 3/4

Door Thickness:

• 1 3/8 1 3/4 automatic adjustment

Faceplates:

• 1 x 2 1/4 round corner standard

Strikes:

• Round corner strike 2 3/4 x 2 1/8

Latch:

• Round corner adjustable 2 3/8 x 2 3/4

Bolt:

• 1 throw, steel deadbolt

Door Handing:

• Reversible

Cylinder:

• SmartKey Security

Environmental Specifications: Temperature Range:

• Exterior:
  • -40°F to 150°F
• Interior:
  • 32
