This item is Discontinued.

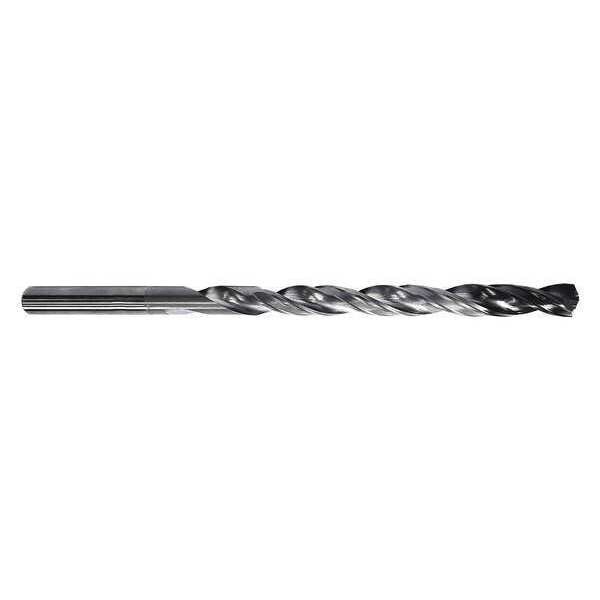

Kyocera 8.40MM COOLANT DRILL 10XD-KTX-XV 865-3307AG4299

8.40MM COOLANT DRILL 10XD-KTX-XV (Discontinued)

  • Mfr # 865-3307AG4299
  • Zoro # G9202070
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
865-3307AG4299
Zoro #
G9202070
UPC #
-
Country of Origin
United States

Dimensions

Drill Bit Dimension Type
Metric
Drill Bit Size
8.40 mm
Shank Dia.
25/64 in
Overall Length
160.00 mm
Flute Length
4 19/64 in
Maximum Drilling Depth
3 19/64 in
Depth:Dia. Ratio
10xD
Depth x Dia. Ratio
10xD
Drill Length Class
Extra Long
Shank Length
1 53/64 in

Details

Item
Extra Long Drill Bit
Shank Type
Straight
Drill Bit Material
Solid Carbide
Drill Bit Finish
AlTiN Nano
Decimal Equivalent
0.3307
Drill Bit Point Angle
135 Degrees
Coolant Fed
Coolant Through
Cutting Direction
Right Hand
Number of Flutes
2
Coolant Through
Yes
Shank Type - Machining
Straight
List Number
865
Flute Type
Spiral
Application
Metalworking
Grade
Sub Micron Grain Carbide
Standards
Not Rated
Primary Material Application
Brass, Cast Iron, Composite, Copper, Graphite
Primary Material Application ISO Code
H, M, P, S
Material - Machining
Carbide
Finish - Machining
AlTiN
Series
865 HYDROS
Web Thinning
X-Thinned
Spiral Direction
Right Hand
Web Construction
Split
Material Grade - Machining
Sub Micron
Measurement System
Metric
Drill Bit Point Type
6 Facet Point
Number of Coolant Holes
2
Point type
Six Facet

Description

Extra Long Drill Bit, Drill Bit Size 8.40 mm, Drill Bit Point Angle 135 Degrees , 6 Facet Point, Carbide, AlTiN, Material Grade - Machining Sub Micron, Maximum Drilling Depth 3 19/64 in, Metric, 10xD
