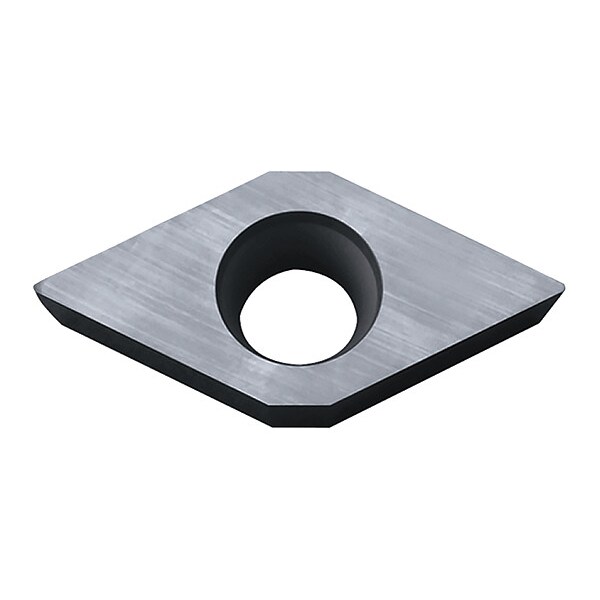

Kyocera Diamond Turning Insert, Diamond, 2, 0 DCGW21500KW10 - main

Diamond Turning Insert, Diamond, 2, 0

  • Mfr # DCGW21500KW10

  • Zoro # G7969134

product price: $17.65
/ea
Sold in multiples of 10 for $176.50

Key Features

Insert Shape
Diamond
Inscribed Circle
2
Chip-Breaker
No
Corner Radius
0
Rake
Positive
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DCGW21500KW10
Zoro #
G7969134
UPC #
-
Country of Origin
China

Dimensions

Corner Radius
0
Thickness
1.5
Through Hole Inside Dia.
0.1102"

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Inscribed Circle
2
Chip-Breaker
No
Rake
Positive
ISO Number
DCGW070200
Cutting Direction
Neutral
Features
For Stable Cutting of Cast Iron, Non-Ferrous Materials, Non-Metals and Titanium Alloys
Included Angle
55 Degrees
Insert Holding Type
Screw
Primary Material Application ISO Code
N
Cutting Application
Back Boring, Copying, External Turning, Finishing to Medium Cutting
Finish - Machining
Bright (Uncoated)
Primary Material Application
Aluminum, Brass, Bronze, Copper, Non-Ferrous
Number of Cutting Edges
2
General Shape
Diamond
Shape
Diamond
Material Grade - Machining
WC-Co
Manufacturer Grade
KW10
Measurement System
Fractional Inch
Clearance Angle
7 Degrees
Hole Type
40 Degrees to 60 Degrees Countersink Through Hole
ANSI Code
DCGW21500
Material - Machining
Carbide

Description

Diamond Turning Insert, Inscribed Circle 1/4 in, Bright (Uncoated), ANSI Code DCGW21500, Clearance Angle 7 Degrees
