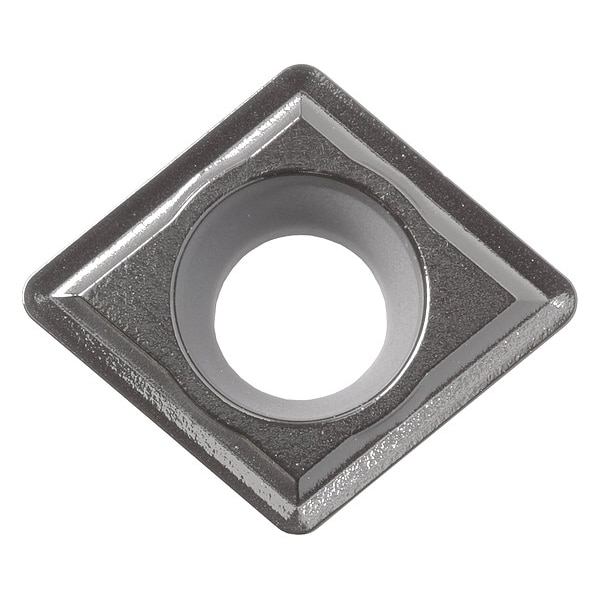

Kyocera Diamond Turning Insert, Diamond, 2, .2 CCGT21502TN60 - main

Diamond Turning Insert, Diamond, 2, .2

  • Mfr # CCGT21502TN60

  • Zoro # G7428524

product price: $11.65
/ea
Sold in multiples of 10 for $116.50

Key Features

Insert Shape
Diamond
Inscribed Circle
2
Chip-Breaker
No
Corner Radius
.2
Rake
Positive
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
CCGT21502TN60
Zoro #
G7428524
UPC #
-
Country of Origin
Multiple

Dimensions

Corner Radius
.2
Thickness
1.5
Through Hole Inside Dia.
0.1102"

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Inscribed Circle
2
Chip-Breaker
No
Rake
Positive
ISO Number
CCGT21502
Cutting Direction
Neutral
Features
General Purpose Cermet with Superior Wear Resistance and Toughness
Secondary Material Application ISO Code
M
Clearance Angle
7 Degrees
Material Grade - Machining
TiCN+NbC Component
Cutting Application
Boring, External Turning, Facing, Internal Facing, Sub-Spindle Turning
Primary Material Application
Steel
Primary Material Application ISO Code
P
Included Angle
80 Degrees
ANSI Code
CCGT21502
Insert Holding Type
Screw
Measurement System
Fractional Inch
Hole Type
40 Degrees to 60 Degrees Countersink Through Hole
Manufacturer Grade
TN60
Finish - Machining
Bright (Uncoated)
Material - Machining
Cermet
Number of Cutting Edges
2
General Shape
Diamond
Secondary Material Application
Stainless Steel
Shape
Diamond

Description

Diamond Turning Insert, Inscribed Circle 1/4 in, Bright (Uncoated), ANSI Code CCGT21502, Clearance Angle 7 Degrees

Restrictions

WARNING: This product can expose you to chemicals including Cobalt metal powder, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
