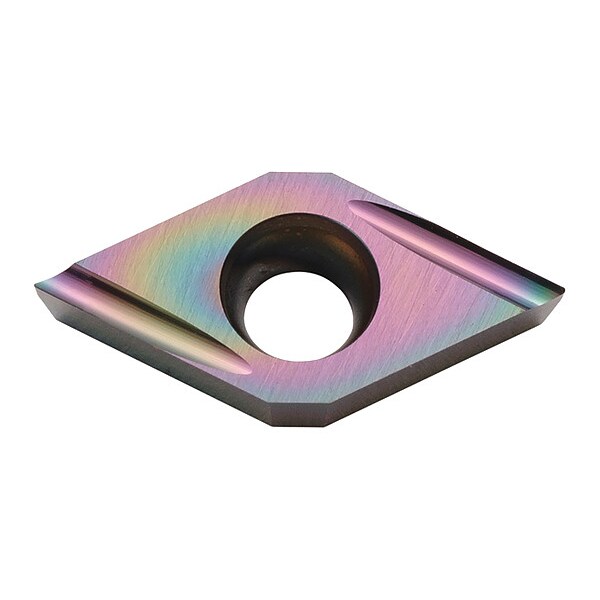

Kyocera Diamond Turning Insert, Diamond, 2, .2 DCET21502MFRUPDL010 - main

Diamond Turning Insert, Diamond, 2, .2

  • Mfr # DCET21502MFRUPDL010

  • Zoro # G9733947

product price: $15.49
/ea
Sold in multiples of 10 for $154.90

Key Features

Insert Shape
Diamond
Inscribed Circle
2
Chip-Breaker
Yes
Corner Radius
.2
Rake
Positive
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
DCET21502MFRUPDL010
Zoro #
G9733947
UPC #
-
Country of Origin
Japan

Dimensions

Corner Radius
.2
Thickness
1.5
Through Hole Inside Dia.
0.1102"

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Inscribed Circle
2
Chip-Breaker
Yes
Rake
Positive
ISO Number
DCET070201MFR-U
Cutting Direction
Right Hand
Features
For Excellent Surface Finish During Continuous Aluminum Machining, High Hardness Close to that of Diamond with Kyocera's Proprietary Hydrogen-Free DLC Coating
Material - Machining
Carbide
Chip-Breaker Code
U
Shape
Diamond
Measurement System
Fractional Inch
General Shape
Diamond
Insert Holding Type
Screw or Clamp
Hole Type
40 Degrees to 60 Degrees Countersink Through Hole
Included Angle
55 Degrees
Clearance Angle
7 Degrees
Finish - Machining
DLC
Cutting Application
Back Boring, Copying, External Turning, Sub-Spindle Turning
Manufacturer Grade
PDL010
Cutting Edge
Minus Tolerance Corner Radius; Sharp Edge
Number of Cutting Edges
2
Primary Material Application
Aluminum, Brass, Bronze, Copper, Non-Ferrous
Primary Material Application ISO Code
N
ANSI Code
DCET21502MFRU

Description

Diamond Turning Insert, Chip-Breaker Code U, Inscribed Circle 1/4 in, DLC, ANSI Code DCET21502MFRU, Clearance Angle 7 Degrees

Restrictions

WARNING: This product can expose you to chemicals including Cobalt metal powder, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
