  11. Diamond Turning Insert, Diamond, 2, .5

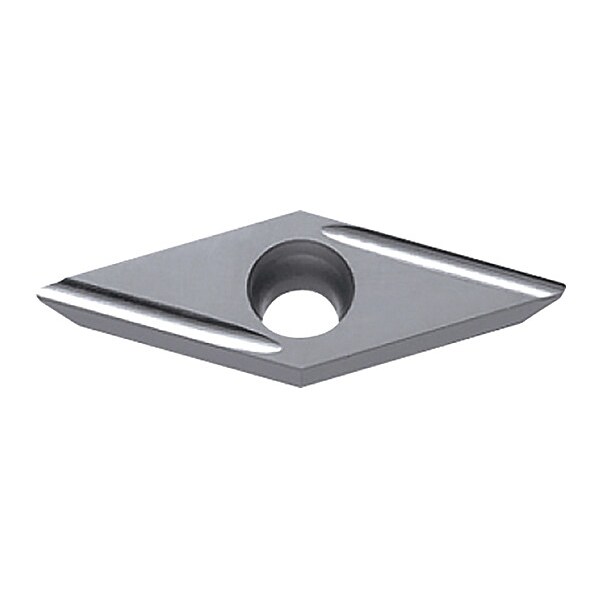

Kyocera Diamond Turning Insert, Diamond, 2, .5 VPET2205FRUSFTN60 - main

Diamond Turning Insert, Diamond, 2, .5

  • Mfr # VPET2205FRUSFTN60

  • Zoro # G7968468

product price: $16.35
/ea
Sold in multiples of 10 for $163.50

Key Features

Insert Shape
Diamond
Inscribed Circle
2
Chip-Breaker
Yes
Corner Radius
.5
Rake
Positive
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VPET2205FRUSFTN60
Zoro #
G7968468
UPC #
-
Country of Origin
China

Dimensions

Corner Radius
.5
Thickness
2
Through Hole Inside Dia.
0.1102"

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Inscribed Circle
2
Chip-Breaker
Yes
Rake
Positive
ISO Number
VPET110302FR-USF
Cutting Direction
Right Hand
Features
General Purpose Cermet with Superior Wear Resistance and Toughness
Number of Cutting Edges
2
Cutting Edge
Precision; Sharp Edge; Super Fine
Measurement System
Fractional Inch
Primary Material Application
Steel
Shape
Diamond
Secondary Material Application ISO Code
M
Manufacturer Grade
TN60
ANSI Code
VPET2205FRUSF
Included Angle
35 Degrees
Chip-Breaker Code
USF
Material Grade - Machining
TiCN+NbC Component
Material - Machining
Cermet
Primary Material Application ISO Code
P
Insert Holding Type
Screw
General Shape
Diamond
Secondary Material Application
Stainless Steel
Hole Type
40 Degrees to 60 Degrees Countersink Through Hole
Clearance Angle
11 Degrees
Finish - Machining
Bright (Uncoated)
Cutting Application
Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting

Description

Diamond Turning Insert, Chip-Breaker Code USF, Inscribed Circle 1/4 in, Bright (Uncoated), ANSI Code VPET2205FRUSF, Clearance Angle 11 Degrees

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
