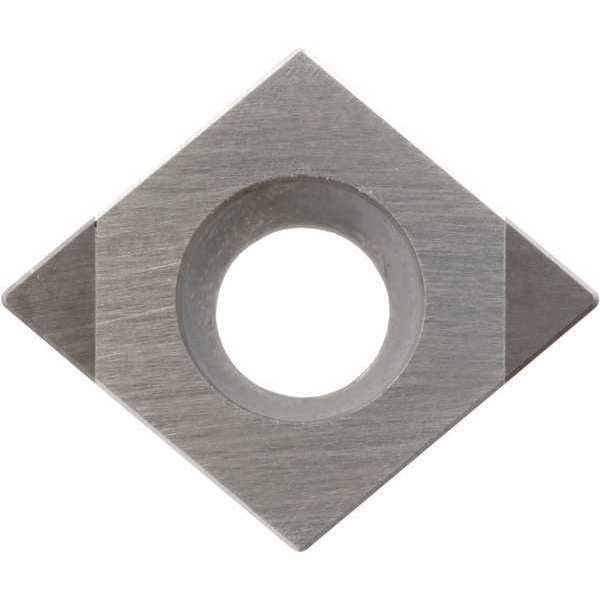

Kyocera Diamond Turning Insert, Diamond, 2, CCMW, 1, CBN CCMW2151T00315MEKBN05M - main

Diamond Turning Insert, Diamond, 2, CCMW, 1, CBN

  • Mfr # CCMW2151T00315MEKBN05M

  • Zoro # G7435587

product price: $91.99
/ea
Free Shipping & Returns

Key Features

Insert Shape
Diamond
Insert Style
CCMW
Inscribed Circle
2
Insert Size
2151
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CCMW2151T00315MEKBN05M
Zoro #
G7435587
UPC #
-
Country of Origin
Multiple

Dimensions

Insert Size
2151
Corner Radius
1
Nose Radius
0.0156"
Insert Thickness
0.094"
Mounting Hole Dia.
0.110"
Thickness
1.5

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CCMW
Inscribed Circle
2
Chip-Breaker
Yes
Grade
KBN05M
Insert Material
CBN
Insert Application
Finishing
Rake
Positive
ISO Number
CCMW060204T00815ME
Steel (P) Compatibility
No
Super Alloy (S) Compatibility
No
Stainless (M) Compatibility
No
Non Ferrous (N) Compatibility
No
Mounting Style
Rigid Clamp
Workpiece Compatibility
Hardened (H)
Hardened (H) Compatibility
Yes
Cutting Direction
Neutral
For Use With
Mfr. No. ACLCR/L-2, SCLCR/L-2, S-SCLCL06
No. of Edges
2
ANSI Number
CCMW2151T00315MEKBN05M
Cast Iron (K) Compatibility
No
Relief Angle
7 Degrees
Coating
Megacoat
Clearance Angle
7 Degrees
Primary Material Application
Hardened Steel
Finish - Machining
Megacoat Nano
Secondary Material Application
Steel
Primary Material Application ISO Code
H
Manufacturer Grade
KBN05M
Secondary Material Application ISO Code
P
Measurement System
Fractional Inch
Chip-Breaker Code
ME
Insert Holding Type
Screw
Number of Cutting Edges
2
Included Angle
80 Degrees
ANSI Code
CCMW2151T00315MEKBN05M
Shape
Rhombic
Features
Heat Resistant
Cutting Application
Turning
Material - Machining
CBN
Material
CBN

Description

Diamond Turning Insert, Chip-Breaker Code ME, Inscribed Circle 1/4 in, Megacoat Nano, ANSI Code CCMW2151T00315MEKBN05M, Clearance Angle 7 Degrees
