  11. Diamond Turning Insert, Diamond, 3, 1

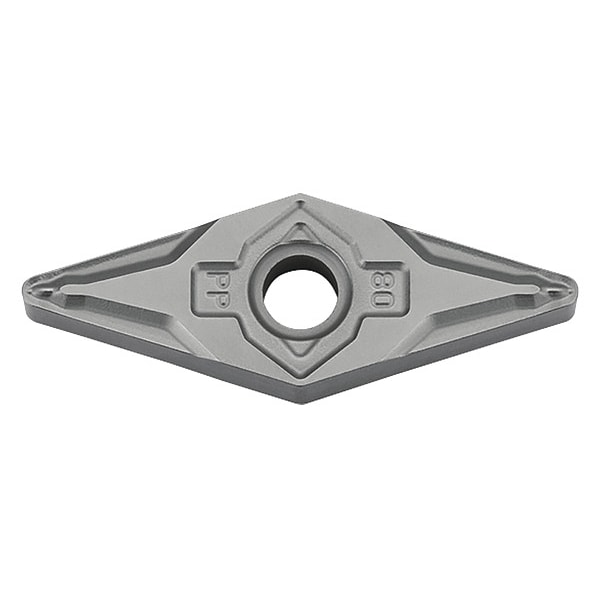

Kyocera Diamond Turning Insert, Diamond, 3, 1 VNMG331PPTN620 - main

Diamond Turning Insert, Diamond, 3, 1

  • Mfr # VNMG331PPTN620

  • Zoro # G9732547

product price: $15.19
/ea
Sold in multiples of 10 for $151.90

Key Features

Insert Shape
Diamond
Inscribed Circle
3
Chip-Breaker
Yes
Corner Radius
1
Rake
Negative
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VNMG331PPTN620
Zoro #
G9732547
UPC #
-
Country of Origin
Japan

Dimensions

Corner Radius
1
Thickness
3
Through Hole Inside Dia.
0.1500"

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Inscribed Circle
3
Chip-Breaker
Yes
Rake
Negative
ISO Number
VNMG160404PP
Cutting Direction
Neutral
Features
Inner Structure Has High Toughness and Chipping Resistance Along with Thermal Shock Resistance, Recommended Cermet for Stable Steel Machining and High Quality Surface Finish
Chip-Breaker Code
PP
Measurement System
Fractional Inch
ANSI Code
VNMG331PP
Shape
Diamond
General Shape
Diamond
Insert Holding Type
Screw
Cutting Application
Copying, External Turning, Facing, Undercutting
Primary Material Application ISO Code
P
Included Angle
35 Degrees
Material - Machining
Cermet
Manufacturer Grade
TN620
Hole Type
Straight Hole
Chip-Breaker Style
Finishing
Number of Cutting Edges
4
Clearance Angle
0 Degrees
Primary Material Application
Steel
Finish - Machining
Bright (Uncoated)

Description

Diamond Turning Insert, Chip-Breaker Code PP, Inscribed Circle 3/8 in, Bright (Uncoated), ANSI Code VNMG331PP, Chip-Breaker Style Finishing, Clearance Angle 0 Degrees

Restrictions

WARNING: This product can expose you to chemicals including Cobalt metal powder, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
