  11. Diamond Turning Insert, Diamond, 3, 2

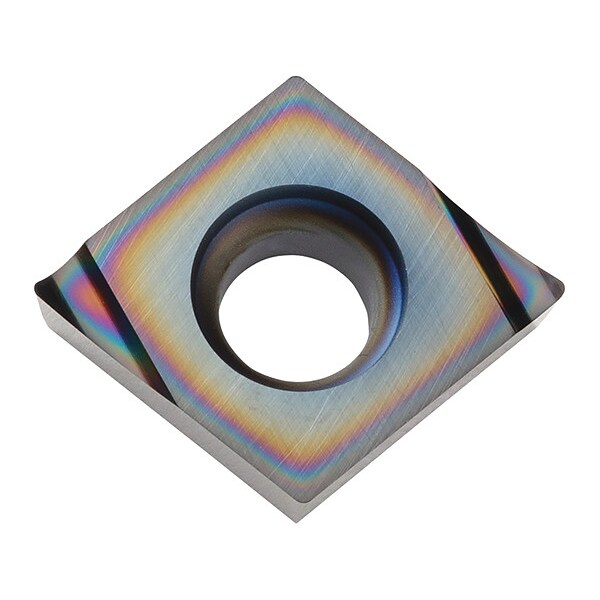

Kyocera Diamond Turning Insert, Diamond, 3, 2 CCGT3252RA3PDL010 - main

Diamond Turning Insert, Diamond, 3, 2

  • Mfr # CCGT3252RA3PDL010

  • Zoro # G9734123

product price: $21.79
/ea
Sold in multiples of 10 for $217.90

Key Features

Insert Shape
Diamond
Inscribed Circle
3
Chip-Breaker
Yes
Corner Radius
2
Rake
Positive
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
CCGT3252RA3PDL010
Zoro #
G9734123
UPC #
-
Country of Origin
Multiple

Dimensions

Corner Radius
2
Thickness
2.5
Through Hole Inside Dia.
0.1732"

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Inscribed Circle
3
Chip-Breaker
Yes
Rake
Positive
ISO Number
CCGT09T308R-A3
Cutting Direction
Right Hand
Features
For Excellent Surface Finish During Continuous Aluminum Machining, High Hardness Close to that of Diamond with Kyocera's Proprietary Hydrogen-Free DLC Coating
Shape
Diamond
Primary Material Application
Aluminum, Brass, Bronze, Copper, Non-Ferrous
Measurement System
Fractional Inch
Hole Type
40 Degrees to 60 Degrees Countersink Through Hole
General Shape
Diamond
Insert Holding Type
Screw or Clamp
ANSI Code
CCGT3252RA3
Clearance Angle
7 Degrees
Chip-Breaker Style
Medium Finishing
Manufacturer Grade
PDL010
Cutting Application
Boring, External Turning, Facing, Internal Facing, Sub-Spindle Turning
Finish - Machining
DLC
Cutting Edge
Sharp Edge
Primary Material Application ISO Code
N
Material - Machining
Carbide
Included Angle
80 Degrees
Number of Cutting Edges
2
Chip-Breaker Code
A3

Description

Diamond Turning Insert, Chip-Breaker Code A3, Inscribed Circle 3/8 in, DLC, ANSI Code CCGT3252RA3, Chip-Breaker Style Medium Finishing, Clearance Angle 7 Degrees
