  11. Diamond Turning Insert, Diamond, 3, .2

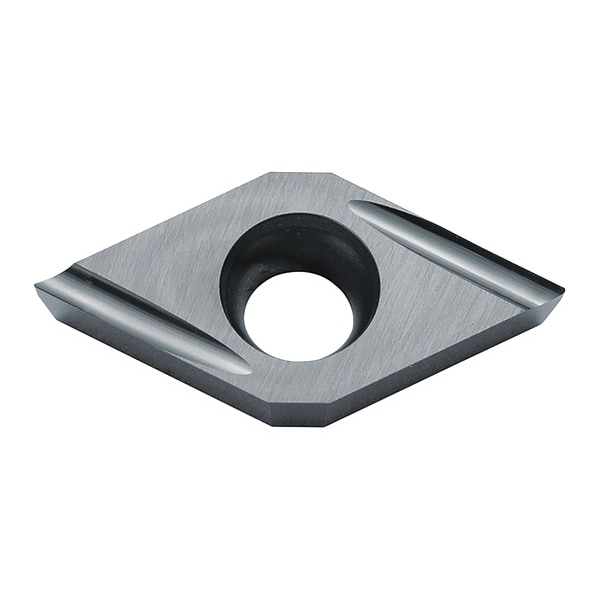

Kyocera Diamond Turning Insert, Diamond, 3, .2 DCGT32502FRUKW10 - main

Diamond Turning Insert, Diamond, 3, .2

  • Mfr # DCGT32502FRUKW10

  • Zoro # G8143337

product price: $15.79
/ea
Sold in multiples of 10 for $157.90

Key Features

Insert Shape
Diamond
Inscribed Circle
3
Chip-Breaker
Yes
Corner Radius
.2
Rake
Positive
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DCGT32502FRUKW10
Zoro #
G8143337
UPC #
-
Country of Origin
Multiple

Dimensions

Corner Radius
.2
Thickness
2.5
Through Hole Inside Dia.
0.1732"

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Inscribed Circle
3
Chip-Breaker
Yes
Rake
Positive
ISO Number
DCGT32502FRU
Cutting Direction
Right Hand
Features
For Stable Cutting of Cast Iron, Non-Ferrous Materials, Non-Metals and Titanium Alloys
Material - Machining
Carbide
Shape
Diamond
Insert Holding Type
Screw
General Shape
Diamond
Measurement System
Fractional Inch
Manufacturer Grade
KW10
Hole Type
40 Degrees to 60 Degrees Countersink Through Hole
Primary Material Application
Aluminum, Brass, Bronze, Copper, Non-Ferrous
Cutting Edge
Sharp Edge
Cutting Application
Back Boring, Copying, External Turning, Sub-Spindle Turning
Number of Cutting Edges
2
Finish - Machining
Bright (Uncoated)
Primary Material Application ISO Code
N
Chip-Breaker Code
U
Clearance Angle
7 Degrees
ANSI Code
DCGT32502FRU
Material Grade - Machining
WC-Co
Included Angle
55 Degrees

Description

Diamond Turning Insert, Chip-Breaker Code U, Inscribed Circle 3/8 in, Bright (Uncoated), ANSI Code DCGT32502FRU, Clearance Angle 7 Degrees

Restrictions

WARNING: This product can expose you to chemicals including Cobalt metal powder, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
