  11. Diamond Turning Insert, Diamond, 3, .5

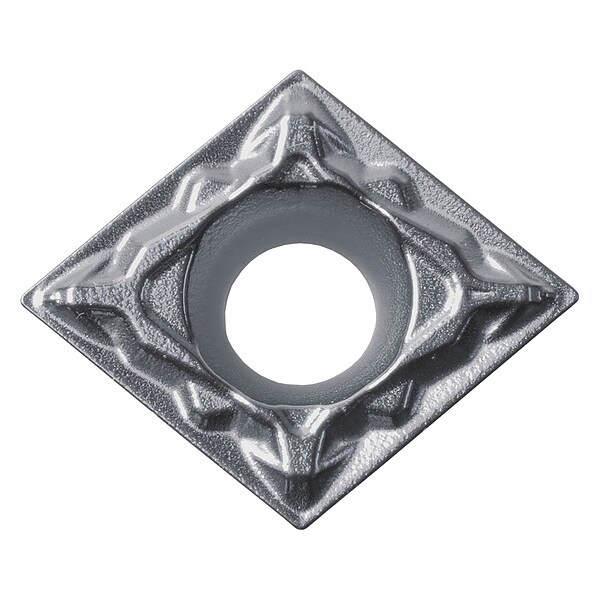

Kyocera Diamond Turning Insert, Diamond, 3, .5 CPMT3205PPTN620 - main

Diamond Turning Insert, Diamond, 3, .5

  • Mfr # CPMT3205PPTN620

  • Zoro # G7416168

product price: $8.69
/ea
Sold in multiples of 10 for $86.90

Key Features

Insert Shape
Diamond
Inscribed Circle
3
Chip-Breaker
Yes
Corner Radius
.5
Rake
Positive
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CPMT3205PPTN620
Zoro #
G7416168
UPC #
-
Country of Origin
Japan

Dimensions

Corner Radius
.5
Thickness
2
Through Hole Inside Dia.
0.1732"

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Inscribed Circle
3
Chip-Breaker
Yes
Rake
Positive
ISO Number
CPMT090302PP
Cutting Direction
Neutral
Features
Inner Structure Has High Toughness and Chipping Resistance Along with Thermal Shock Resistance, Recommended Cermet for Stable Steel Machining and High Quality Surface Finish
Chip-Breaker Code
PP
Finish - Machining
Bright (Uncoated)
Cutting Application
Boring, Internal Facing
Included Angle
80 Degrees
Material - Machining
Cermet
Primary Material Application ISO Code
P
Primary Material Application
Steel
ANSI Code
CPMT3205PP
Shape
Diamond
Chip-Breaker Style
Finishing
Clearance Angle
11 Degrees
Number of Cutting Edges
2
Hole Type
40 Degrees to 60 Degrees Countersink Through Hole
Manufacturer Grade
TN620
Measurement System
Fractional Inch
Insert Holding Type
Screw
General Shape
Diamond

Description

Diamond Turning Insert, Chip-Breaker Code PP, Inscribed Circle 3/8 in, Bright (Uncoated), ANSI Code CPMT3205PP, Chip-Breaker Style Finishing, Clearance Angle 11 Degrees

Restrictions

WARNING: This product can expose you to chemicals including Cobalt metal powder, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
