Shop KYOCERA

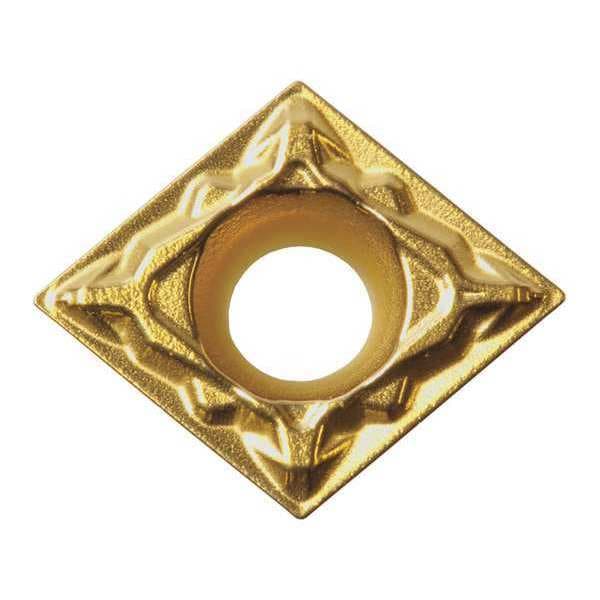

Diamond Turning Insert, Diamond, 3, CPMT, 1, Carbide

  • Mfr # CPMT321PP CA515

  • Zoro # G7429698

product price:
$
12.99
/ea
Sold in multiples of 10 for $129.90

Key Features

Insert Shape
Diamond
Insert Style
CPMT
Inscribed Circle
3/8 in
Insert Size
321
Chip-Breaker
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CPMT321PP CA515
Zoro #
G7429698
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
321
Corner Radius
1/64 in
Insert Thickness
0.1250"
Nose Radius
0.0156"
Mounting Hole Dia.
0.173"
Thickness
1/8 in

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CPMT
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
CA515
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
ISO Number
CPMT090304PP
Stainless (M) Compatibility
No
For Use With
Toolholders, Boring Bars
Workpiece Compatibility
Steel (P)
Cutting Direction
Neutral
Steel (P) Compatibility
Yes
Non Ferrous (N) Compatibility
No
Coating
TiCN/Al2O3/TiN
Super Alloy (S) Compatibility
No
Relief Angle
11 Degrees
No. of Edges
2
ANSI Number
CPMT321PP-CA515
Cast Iron (K) Compatibility
No
Hardened (H) Compatibility
No
Mounting Style
Clamp
Chip-Breaker Code
PP
Finish - Machining
TiCN+Al2O3+TiN
Measurement System
Fractional Inch
Primary Material Application
Steel
Manufacturer Grade
CA515
Clearance Angle
11 Degrees
Features
Improved Wear Resistance and Stability
Included Angle
80 Degrees
Insert Holding Type
Screw
Chip-Breaker Style
Molded, On One Side
Number of Cutting Edges
2
Material - Machining
Carbide
Primary Material Application ISO Code
P
Shape
Rhombic
Cutting Application
Turning
ANSI Code
CPMT321PP CA515
Material
Carbide

Description

Diamond Turning Insert, Chip-Breaker Code PP, Inscribed Circle 3/8 in, TiCN+Al2O3+TiN, ANSI Code CPMT321PP CA515, Chip-Breaker Style Molded, On One Side, Clearance Angle 11 Degrees
