  11. Diamond Turning Insert, Diamond, 3, VNGA, 2, Ceramic

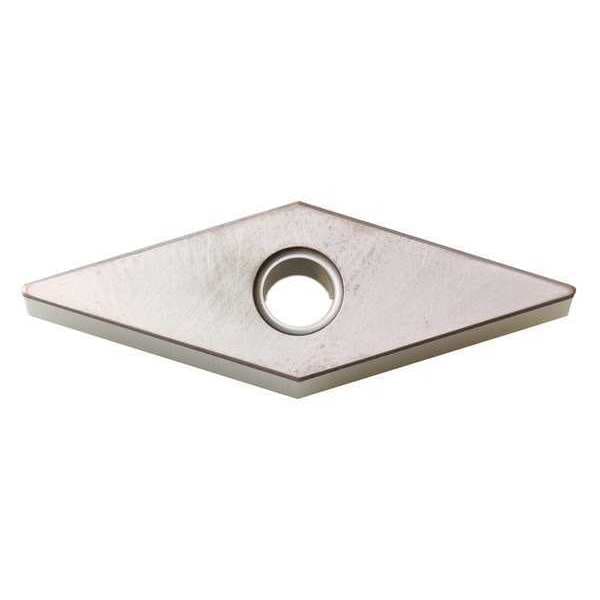

Kyocera Diamond Turning Insert, Diamond, 3, VNGA, 2, Ceramic VNGA332T00825 PT600M - main

Diamond Turning Insert, Diamond, 3, VNGA, 2, Ceramic

  • Mfr # VNGA332T00825 PT600M

  • Zoro # G7410350

product price: $29.75
/ea
Sold in multiples of 10 for $297.50

Key Features

Insert Shape
Diamond
Insert Style
VNGA
Inscribed Circle
3
Insert Size
332
Chip-Breaker
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VNGA332T00825 PT600M
Zoro #
G7410350
UPC #
-
Country of Origin
China

Dimensions

Insert Size
332
Corner Radius
2
Insert Thickness
0.188"
Mounting Hole Dia.
0.150"
Nose Radius
0.0313"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VNGA
Inscribed Circle
3
Chip-Breaker
No
Grade
PT600M
Insert Material
Ceramic
Insert Application
Roughing
Rake
Negative
ISO Number
VNGA160408T02025
No. of Edges
2
Steel (P) Compatibility
No
Super Alloy (S) Compatibility
No
Cast Iron (K) Compatibility
No
ANSI Number
VNGA332T00825 PT600M
Mounting Style
Rigid Clamp
Coating
Al2O3/TiC
Stainless (M) Compatibility
No
Relief Angle
0 Degrees
Workpiece Compatibility
Hardened (H)
Cutting Direction
Neutral
Non Ferrous (N) Compatibility
No
For Use With
Mfr. No. DVJNR/L 12-3B, DVJNR/L 16-3D, MVJNR/L 12-3B, MVJNR/L 16-3C
Hardened (H) Compatibility
Yes
Features
Heat Resistant
Secondary Material Application
Hardened Steel
ANSI Code
VNGA332T00825 PT600M
Material - Machining
Ceramic
Included Angle
35 Degrees
Insert Holding Type
Screw
Finish - Machining
Al2O3+TiC
Secondary Material Application ISO Code
K
Number of Cutting Edges
4
Primary Material Application ISO Code
H
Shape
Rhombic
Clearance Angle
0 Degrees
Cutting Application
Turning
Primary Material Application
Cast Iron
Manufacturer Grade
PT600M
Measurement System
Fractional Inch
Material
Ceramic

Description

Diamond Turning Insert, Inscribed Circle 3/8 in, Al2O3+TiC, ANSI Code VNGA332T00825 PT600M, Clearance Angle 0 Degrees
