  11. Diamond Turning Insert, Diamond, 3, VNGA, .5, CBN

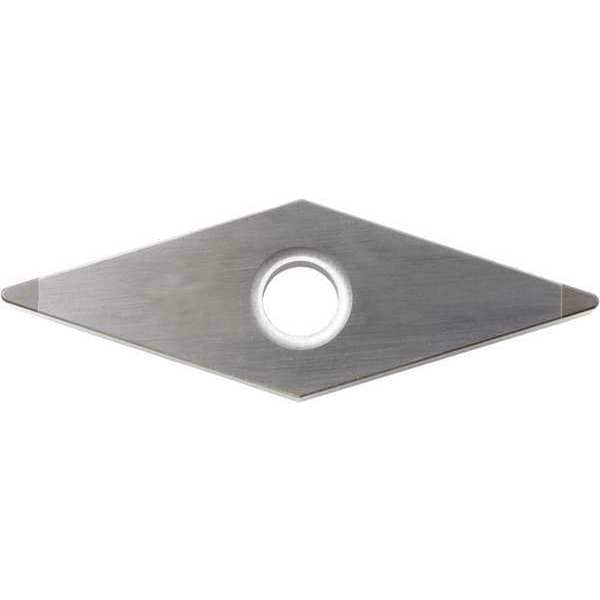

Kyocera Diamond Turning Insert, Diamond, 3, VNGA, .5, CBN VNGA3305S00525MEKBN25M - main

Diamond Turning Insert, Diamond, 3, VNGA, .5, CBN

  • Mfr # VNGA3305S00525MEKBN25M

  • Zoro # G7435596

product price: $77.89
/ea
Free Shipping & Returns

Key Features

Insert Shape
Diamond
Insert Style
VNGA
Inscribed Circle
3
Insert Size
3305
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VNGA3305S00525MEKBN25M
Zoro #
G7435596
UPC #
-
Country of Origin
Multiple

Dimensions

Insert Size
3305
Corner Radius
.5
Mounting Hole Dia.
0.150"
Insert Thickness
0.188"
Nose Radius
0.0079"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VNGA
Inscribed Circle
3
Chip-Breaker
Yes
Grade
KBN25M
Insert Material
CBN
Insert Application
Finishing
Rake
Negative
ISO Number
VNGA160402S01225ME
ANSI Number
VNGA3305S00525MEKBN25M
Stainless (M) Compatibility
No
Mounting Style
Rigid Clamp
No. of Edges
2
Cast Iron (K) Compatibility
No
Workpiece Compatibility
Hardened (H)
Hardened (H) Compatibility
Yes
For Use With
Mfr. No. DVJNR/L 12-3B, DVJNR/L 16-3D, MVJNR/L 12-3B, MVJNR/L 16-3C
Super Alloy (S) Compatibility
No
Coating
Megacoat
Steel (P) Compatibility
No
Cutting Direction
Neutral
Relief Angle
0 Degrees
Non Ferrous (N) Compatibility
No
Number of Cutting Edges
2
Insert Holding Type
Screw
ANSI Code
VNGA3305S00525MEKBN25M
Manufacturer Grade
KBN25M
Primary Material Application
Hardened Steel
Secondary Material Application
Steel
Finish - Machining
Megacoat Nano
Features
Heat Resistant
Clearance Angle
0 Degrees
Secondary Material Application ISO Code
P
Primary Material Application ISO Code
H
Shape
Rhombic
Cutting Application
Turning
Included Angle
35 Degrees
Chip-Breaker Code
ME
Measurement System
Fractional Inch
Material - Machining
CBN
Material
CBN

Description

Diamond Turning Insert, Chip-Breaker Code ME, Inscribed Circle 3/8 in, Megacoat Nano, ANSI Code VNGA3305S00525MEKBN25M, Clearance Angle 0 Degrees
