Shop KYOCERA

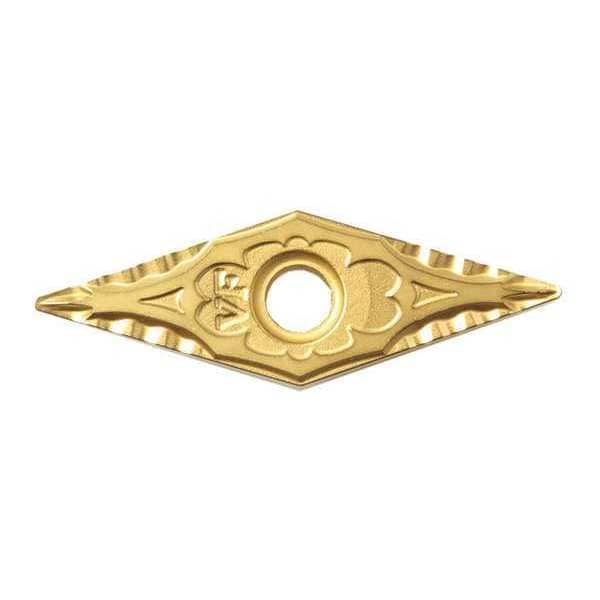

Diamond Turning Insert, Diamond, 3, VNMG, 2, Carbide

  • Mfr # VNMG332VF CA515
  • Zoro # G7393036
product price:
$
18.99
/ea
Sold in multiples of 10 for $189.90

Key Features

Insert Shape
Diamond
Insert Style
VNMG
Inscribed Circle
3/8 in
Insert Size
332
Chip-Breaker
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VNMG332VF CA515
Zoro #
G7393036
UPC #
-
Country of Origin
Multiple

Dimensions

Insert Size
332
Corner Radius
1/32 in
Insert Thickness
0.1875"
Nose Radius
0.0313"
Mounting Hole Dia.
0.150"
Thickness
3/16 in

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VNMG
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
CA515
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
ISO Number
VNMG160408VF
Stainless (M) Compatibility
No
Steel (P) Compatibility
Yes
Non Ferrous (N) Compatibility
No
No. of Edges
4
Super Alloy (S) Compatibility
No
Mounting Style
Clamp
Relief Angle
0 Degrees
Cutting Direction
Neutral
For Use With
Toolholders, Boring Bars
Cast Iron (K) Compatibility
No
Coating
TiCN/Al2O3/TiN
Hardened (H) Compatibility
No
Workpiece Compatibility
Steel (P)
ANSI Number
VNMG332VF-CA515
Features
Improved Wear Resistance and Stability
Primary Material Application
Steel
Manufacturer Grade
CA515
Chip-Breaker Code
VF
Material - Machining
Carbide
Included Angle
35 Degrees
Clearance Angle
0 Degrees
Cutting Application
Turning
ANSI Code
VNMG332VF CA515
Insert Holding Type
Screw
Chip-Breaker Style
Molded, On Two Sides
Measurement System
Fractional Inch
Shape
Rhombic
Primary Material Application ISO Code
P
Number of Cutting Edges
4
Finish - Machining
TiCN+Al2O3+TiN
Material
Carbide

Description

Diamond Turning Insert, Chip-Breaker Code VF, Inscribed Circle 3/8 in, TiCN+Al2O3+TiN, ANSI Code VNMG332VF CA515, Chip-Breaker Style Molded, On Two Sides, Clearance Angle 0 Degrees
