  11. Diamond Turning Insert, Diamond, 3.50mm, 1

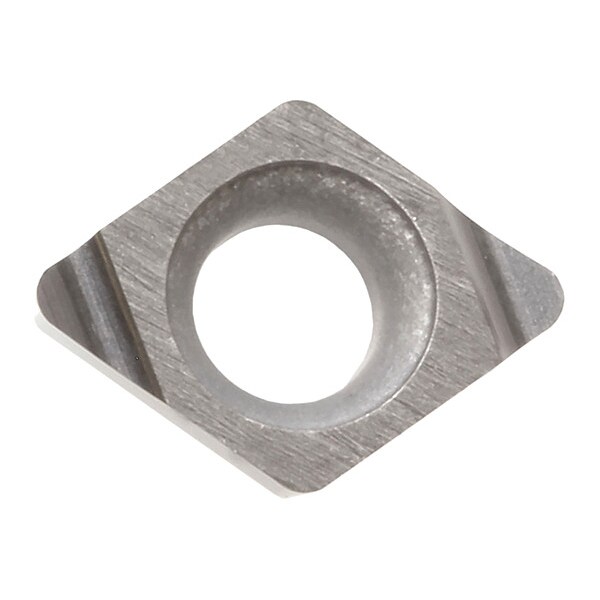

Kyocera Diamond Turning Insert, Diamond, 3.50mm, 1 JCGT11091RFTN60 - main

Diamond Turning Insert, Diamond, 3.50mm, 1

  • Mfr # JCGT11091RFTN60

  • Zoro # G7967847

product price: $14.29
/ea
Sold in multiples of 10 for $142.90

Key Features

Insert Shape
Diamond
Inscribed Circle
3.50mm
Chip-Breaker
Yes
Corner Radius
1
Rake
Positive
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
JCGT11091RFTN60
Zoro #
G7967847
UPC #
-
Country of Origin
Multiple

Dimensions

Corner Radius
1
Thickness
1.40mm
Through Hole Inside Dia.
0.0748"

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Inscribed Circle
3.50mm
Chip-Breaker
Yes
Rake
Positive
ISO Number
JCGT030104R-F
Cutting Direction
Right Hand
Features
General Purpose Cermet with Superior Wear Resistance and Toughness
Primary Material Application
Steel
Material - Machining
Cermet
Manufacturer Grade
TN60
General Shape
Diamond
Finish - Machining
Bright (Uncoated)
Cutting Application
Back Boring, Boring, Internal Facing
Measurement System
Metric
Material Grade - Machining
TiCN+NbC Component
ANSI Code
JCGT11091RF
Included Angle
70 Degrees
Secondary Material Application ISO Code
M
Number of Cutting Edges
2
Insert Holding Type
Screw
Cutting Edge
Sharp Edge
Hole Type
40 Degrees to 60 Degrees Countersink Through Hole
Clearance Angle
7 Degrees
Chip-Breaker Style
Finishing
Chip-Breaker Code
F
Secondary Material Application
Stainless Steel
Shape
Diamond
Primary Material Application ISO Code
P

Description

Diamond Turning Insert, Chip-Breaker Code F, Inscribed Circle 3.50mm, Bright (Uncoated), ANSI Code JCGT11091RF, Chip-Breaker Style Finishing, Clearance Angle 7 Degrees
