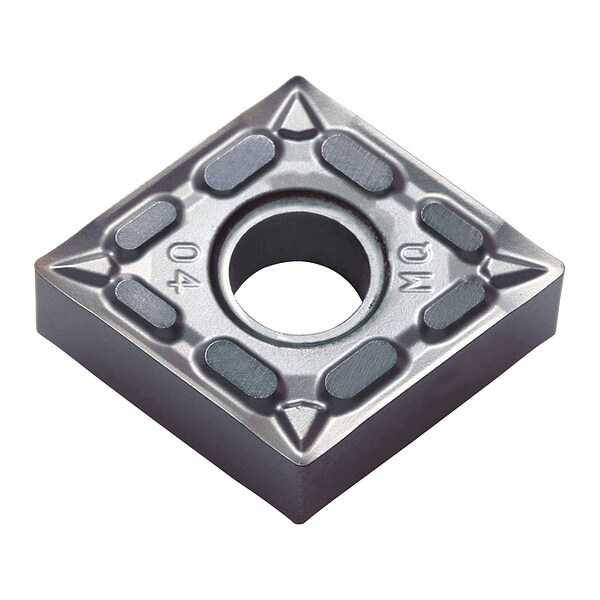

Diamond Turning Insert, Diamond, 4, 1

Mfr # CNMG431MQPR1535
Zoro # G7418679

12.15

Sold in multiples of 10 for $121.50

Key Features

Insert Shape

Diamond

Inscribed Circle

1/2 in

Chip-Breaker

Yes

Corner Radius

1/64 in

Rake

Negative

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: CNMG431MQPR1535
Zoro #: G7418679
UPC #: -
Country of Origin: Japan

Dimensions

Corner Radius: 1/64 in
Thickness: 3/16 in
Through Hole Inside Dia.: 0.2031"

Details

Item: Diamond Turning Insert
Insert Shape: Diamond
Inscribed Circle: 1/2 in
Chip-Breaker: Yes
Rake: Negative
ISO Number: CNMG120404MQ
Cutting Direction: Neutral
Features: For Titanium Alloys and Precipitation-Hardened Stainless Steel, Stabilized Turning Operations and Long Tool Life
Primary Material Application ISO Code: S
Secondary Material Application ISO Code: M
Included Angle: 80 Degrees
Material - Machining: Carbide
Number of Cutting Edges: 4
Insert Holding Type: Screw
Measurement System: Fractional Inch
Finish - Machining: Megacoat Nano
Secondary Material Application: Stainless Steel
Coating Process: PVD
General Shape: Diamond
Clearance Angle: 0 Degrees
Chip-Breaker Code: MQ
Cutting Application: Boring, External Turning, Facing, Internal Facing
Chip-Breaker Style: Medium Finishing
Shape: Diamond
Hole Type: Straight Hole
Primary Material Application: High-Temperature Alloys
ANSI Code: CNMG431MQ
Manufacturer Grade: PR1535

Description

Diamond Turning Insert, Chip-Breaker Code MQ, Inscribed Circle 1/2 in, Megacoat Nano, ANSI Code CNMG431MQ, Chip-Breaker Style Medium Finishing, Clearance Angle 0 Degrees , Coating Process PVD

Restrictions

WARNING: This product can expose you to chemicals including Cobalt metal powder, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
