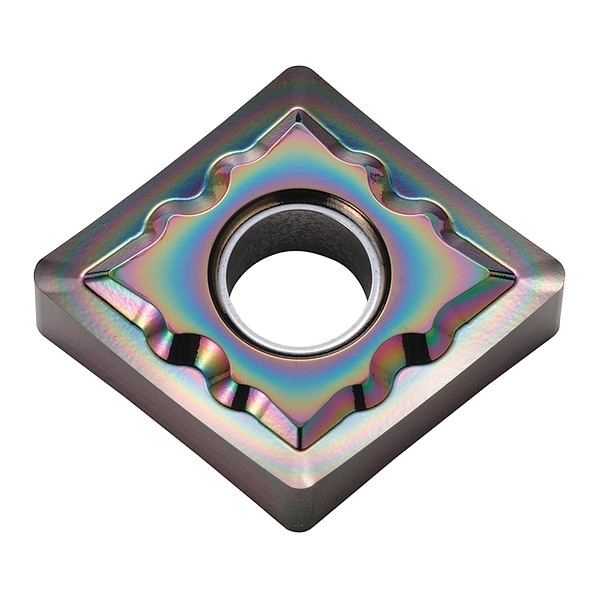

Kyocera Diamond Turning Insert, Diamond, 4, 2 CNGG432AHPDL025 - main

Diamond Turning Insert, Diamond, 4, 2

  • Mfr # CNGG432AHPDL025

  • Zoro # G7420465

product price: $29.29
/ea
Sold in multiples of 10 for $292.90

Key Features

Insert Shape
Diamond
Inscribed Circle
4
Chip-Breaker
Yes
Corner Radius
2
Rake
Negative
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNGG432AHPDL025
Zoro #
G7420465
UPC #
-
Country of Origin
Multiple

Dimensions

Corner Radius
2
Thickness
3
Through Hole Inside Dia.
0.2031"

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Inscribed Circle
4
Chip-Breaker
Yes
Rake
Negative
ISO Number
CNGG120408AH
Cutting Direction
Neutral
Features
For Stable Cutting of Aluminum, High Hardness Close to that of Diamond with Kyocera's Proprietary Hydrogen-Free DLC Coating
Finish - Machining
DLC
Shape
Diamond
Chip-Breaker Code
AH
Number of Cutting Edges
4
Primary Material Application ISO Code
N
Insert Holding Type
Screw
ANSI Code
CNGG432AH
Cutting Edge
Sharp Edge
Material - Machining
Carbide
Measurement System
Fractional Inch
General Shape
Diamond
Manufacturer Grade
PDL025
Hole Type
Straight Hole
Clearance Angle
0 Degrees
Cutting Application
Boring, External Turning, Facing, Internal Facing
Included Angle
80 Degrees
Primary Material Application
Aluminum, Brass, Bronze, Copper, Non-Ferrous
Chip-Breaker Style
Medium Roughing

Description

Diamond Turning Insert, Chip-Breaker Code AH, Inscribed Circle 1/2 in, DLC, ANSI Code CNGG432AH, Chip-Breaker Style Medium Roughing, Clearance Angle 0 Degrees

Restrictions

WARNING: This product can expose you to chemicals including Cobalt metal powder, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
