  11. Diamond Turning Insert, Diamond, 4, 2

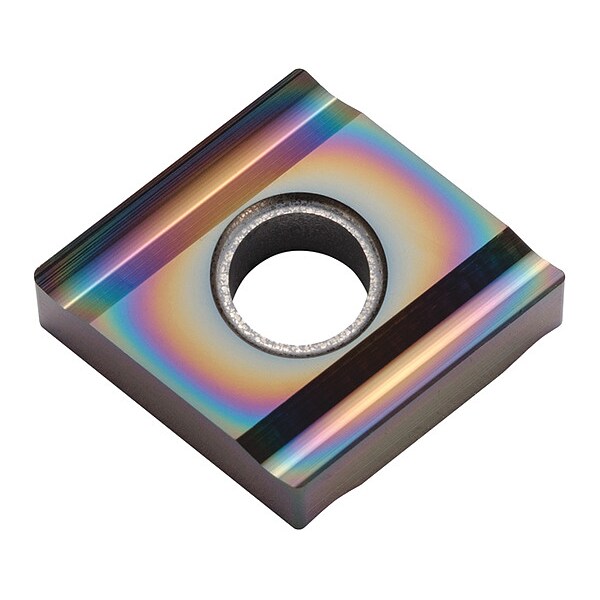

Kyocera Diamond Turning Insert, Diamond, 4, 2 CNGG432LA3PDL010 - main

Diamond Turning Insert, Diamond, 4, 2

  • Mfr # CNGG432LA3PDL010

  • Zoro # G7433975

product price: $34.15
/ea
Sold in multiples of 10 for $341.50

Key Features

Insert Shape
Diamond
Inscribed Circle
4
Chip-Breaker
Yes
Corner Radius
2
Rake
Negative
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNGG432LA3PDL010
Zoro #
G7433975
UPC #
-
Country of Origin
Japan

Dimensions

Corner Radius
2
Thickness
3
Through Hole Inside Dia.
0.2031"

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Inscribed Circle
4
Chip-Breaker
Yes
Rake
Negative
ISO Number
CNGG120408L-A3
Cutting Direction
Left Hand
Features
For Excellent Surface Finish During Continuous Aluminum Machining, High Hardness Close to that of Diamond with Kyocera's Proprietary Hydrogen-Free DLC Coating
ANSI Code
CNGG432LA3
Included Angle
80 Degrees
Primary Material Application ISO Code
N
General Shape
Diamond
Primary Material Application
Aluminum, Brass, Bronze, Copper, Non-Ferrous
Cutting Edge
Sharp Edge
Shape
Diamond
Chip-Breaker Style
Medium Finishing
Clearance Angle
0 Degrees
Number of Cutting Edges
4
Manufacturer Grade
PDL010
Hole Type
Straight Hole
Chip-Breaker Code
A3
Measurement System
Fractional Inch
Finish - Machining
DLC
Material - Machining
Carbide
Cutting Application
Boring, External Turning, Facing, Internal Facing
Insert Holding Type
Screw or Clamp

Description

Diamond Turning Insert, Chip-Breaker Code A3, Inscribed Circle 1/2 in, DLC, ANSI Code CNGG432LA3, Chip-Breaker Style Medium Finishing, Clearance Angle 0 Degrees

Restrictions

WARNING: This product can expose you to chemicals including Cobalt metal powder, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
