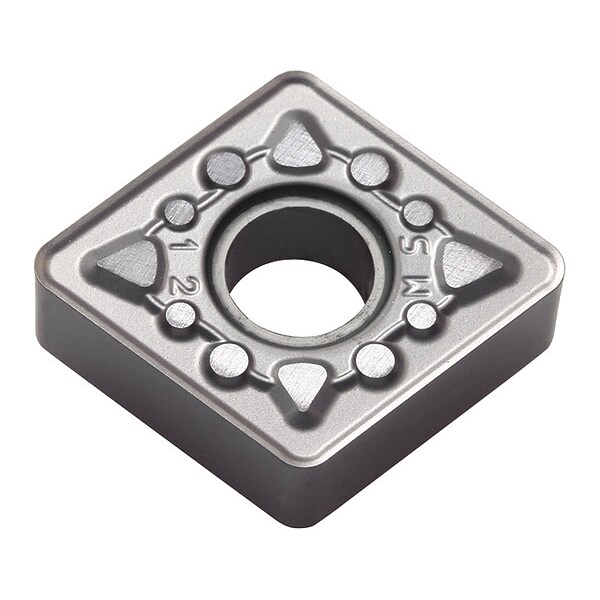

Kyocera Diamond Turning Insert, Diamond, 4, 3 CNMG433MSPR005S - main

Diamond Turning Insert, Diamond, 4, 3

  • Mfr # CNMG433MSPR005S

  • Zoro # G9733527

product price: $10.89
/ea
Sold in multiples of 10 for $108.90

Key Features

Insert Shape
Diamond
Inscribed Circle
4
Chip-Breaker
Yes
Corner Radius
3
Rake
Negative
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG433MSPR005S
Zoro #
G9733527
UPC #
-
Country of Origin
Japan

Dimensions

Corner Radius
3
Thickness
3
Through Hole Inside Dia.
0.2031"

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Inscribed Circle
4
Chip-Breaker
Yes
Rake
Negative
ISO Number
CNMG120412MS
Cutting Direction
Neutral
Features
Improved Thermal Conductivity by Optimum Distribution of WC Coarse Grains in the Substrate, Resists Heat Concentration at the Cutting Edge to Promote Stable Machining
Coating Process
PVD
Chip-Breaker Code
MS
General Shape
Diamond
Finish - Machining
Megacoat Hard
Number of Cutting Edges
4
Manufacturer Grade
PR005S
Included Angle
80 Degrees
Hole Type
Straight Hole
Insert Holding Type
Screw
Measurement System
Fractional Inch
Primary Material Application
High-Temperature Alloys
Material - Machining
Carbide
Clearance Angle
0 Degrees
Cutting Application
Boring, Continuous to Interrupted Cutting, External Turning, Facing, Internal Facing
ANSI Code
CNMG433MS
Primary Material Application ISO Code
S
Shape
Diamond
Chip-Breaker Style
Medium Roughing

Description

Diamond Turning Insert, Chip-Breaker Code MS, Inscribed Circle 1/2 in, Megacoat Hard, ANSI Code CNMG433MS, Chip-Breaker Style Medium Roughing, Clearance Angle 0 Degrees , Coating Process PVD

Restrictions

WARNING: This product can expose you to chemicals including Cobalt metal powder, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
