  11. Diamond Turning Insert, Diamond, 4, CNMG, 2, Carbide

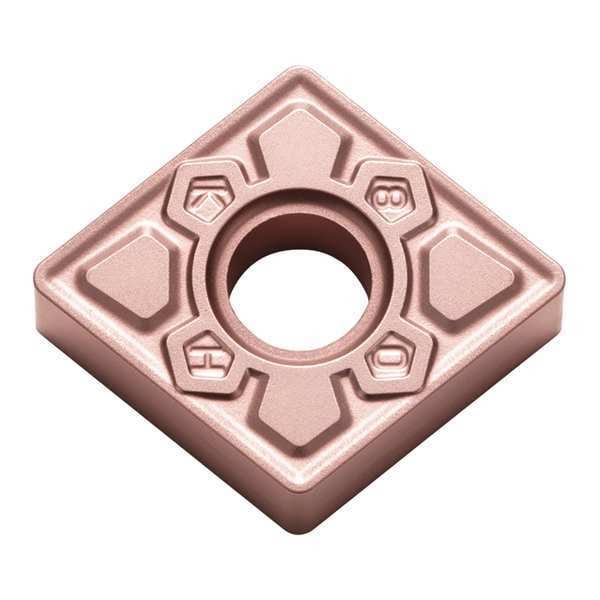

Kyocera Diamond Turning Insert, Diamond, 4, CNMG, 2, Carbide CNMG432KHCA310 - main

Diamond Turning Insert, Diamond, 4, CNMG, 2, Carbide

  • Mfr # CNMG432KHCA310

  • Zoro # G7380217

product price: $9.79
/ea
Sold in multiples of 10 for $97.90

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG432KHCA310
Zoro #
G7380217
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
432
Corner Radius
2
Nose Radius
0.0313"
Insert Thickness
0.1875"
Mounting Hole Dia.
0.203"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
CA310
Insert Material
Carbide
Insert Application
Roughing
Rake
Negative
ISO Number
CNMG120408KH
Cast Iron (K) Compatibility
Yes
Relief Angle
0 Degrees
Hardened (H) Compatibility
No
Cutting Direction
Neutral
Coating
TiCN/Al2O3
No. of Edges
4
For Use With
Toolholders, Boring Bars
Super Alloy (S) Compatibility
No
Non Ferrous (N) Compatibility
No
Mounting Style
Clamp
Stainless (M) Compatibility
No
Workpiece Compatibility
Cast Iron (K)
Steel (P) Compatibility
No
ANSI Number
TCMT 2(1.5)2-UR 4315
Cutting Application
Turning
Included Angle
80 Degrees
Primary Material Application ISO Code
K
Number of Cutting Edges
4
Secondary Material Application ISO Code
K
Material - Machining
Carbide
Measurement System
Fractional Inch
Secondary Material Application
Cast Iron
Shape
Rhombic
ANSI Code
CNMG432KH
Finish - Machining
TiCN+Al2O3+Ti
Insert Holding Type
Screw
Manufacturer Grade
CA310
Chip-Breaker Style
On Two Sides
Primary Material Application
Cast Iron
Clearance Angle
0 Degrees
Chip-Breaker Code
KH
Material
Carbide

Description

Diamond Turning Insert, Chip-Breaker Code KH, Inscribed Circle 1/2 in, TiCN+Al2O3+Ti, ANSI Code CNMG432KH, Chip-Breaker Style On Two Sides, Clearance Angle 0 Degrees
