  11. Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide

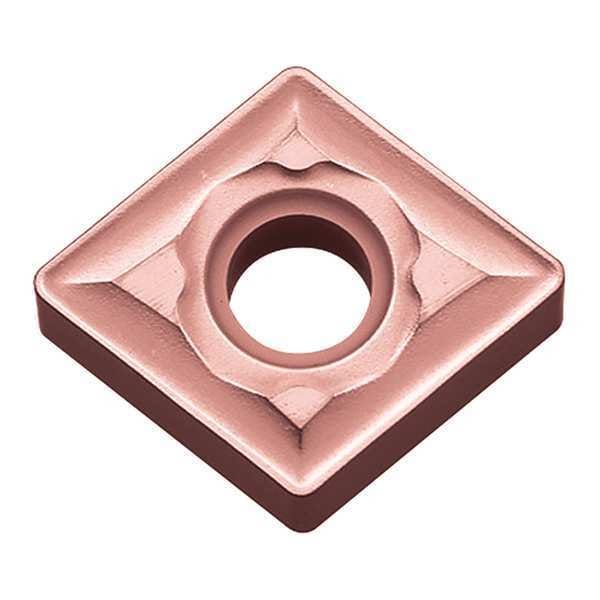

Kyocera Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide CNMG433CCA310 - main

Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide

  • Mfr # CNMG433CCA310

  • Zoro # G7380101

product price: $9.65
/ea
Sold in multiples of 10 for $96.50

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Insert Size
433
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
CNMG433CCA310
Zoro #
G7380101
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
433
Corner Radius
3
Insert Thickness
0.1875"
Mounting Hole Dia.
0.203"
Nose Radius
0.0469"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
CA310
Insert Material
Carbide
Insert Application
Roughing
Rake
Negative
ISO Number
CNMG120412C
Workpiece Compatibility
Cast Iron (K)
Super Alloy (S) Compatibility
No
Steel (P) Compatibility
No
Stainless (M) Compatibility
No
Mounting Style
Clamp
No. of Edges
4
Cutting Direction
Neutral
Non Ferrous (N) Compatibility
No
Cast Iron (K) Compatibility
Yes
For Use With
Toolholders, Boring Bars
ANSI Number
TCMT 2(1.5)2-UR 4315
Relief Angle
0 Degrees
Coating
TiCN/Al2O3
Hardened (H) Compatibility
No
ANSI Code
CNMG433C
Secondary Material Application ISO Code
K
Cutting Application
Turning
Finish - Machining
TiCN+Al2O3+Ti
Secondary Material Application
Cast Iron
Primary Material Application ISO Code
K
Shape
Rhombic
Chip-Breaker Style
Ground, On Two Sides
Number of Cutting Edges
4
Chip-Breaker Code
C
Measurement System
Fractional Inch
Insert Holding Type
Screw
Material - Machining
Carbide
Clearance Angle
0 Degrees
Included Angle
80 Degrees
Primary Material Application
Cast Iron
Manufacturer Grade
CA310
Material
Carbide

Description

Diamond Turning Insert, Chip-Breaker Code C, Inscribed Circle 1/2 in, TiCN+Al2O3+Ti, ANSI Code CNMG433C, Chip-Breaker Style Ground, On Two Sides, Clearance Angle 0 Degrees
