  11. Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide

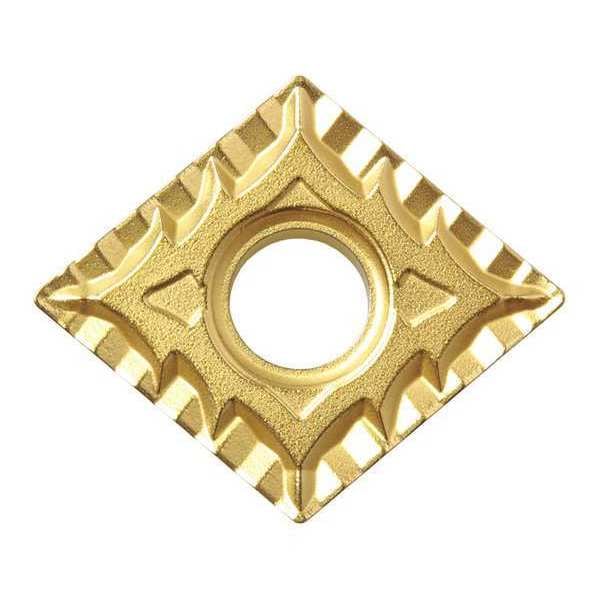

Kyocera Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide CNMG433CQ CA515 - main

Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide

  • Mfr # CNMG433CQ CA515

  • Zoro # G7380311

product price: $9.65
/ea
Sold in multiples of 10 for $96.50

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Insert Size
433
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG433CQ CA515
Zoro #
G7380311
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
433
Corner Radius
3
Mounting Hole Dia.
0.203"
Nose Radius
0.0469"
Insert Thickness
0.1875"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
CA515
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
ISO Number
CNMG120412CQ
Relief Angle
0 Degrees
ANSI Number
TCMT 2(1.5)2-UR 4315
Steel (P) Compatibility
Yes
Coating
TiCN/Al2O3/TiN
Super Alloy (S) Compatibility
No
Stainless (M) Compatibility
No
Non Ferrous (N) Compatibility
No
Cast Iron (K) Compatibility
No
Mounting Style
Clamp
Cutting Direction
Neutral
Workpiece Compatibility
Steel (P)
For Use With
Toolholders, Boring Bars
No. of Edges
4
Hardened (H) Compatibility
No
Primary Material Application
Steel
Manufacturer Grade
CA515
Chip-Breaker Code
CQ
Clearance Angle
0 Degrees
Chip-Breaker Style
Molded, On Two Sides
Insert Holding Type
Screw
Features
Improved Wear Resistance and Stability
Finish - Machining
TiCN+Al2O3+TiN
Included Angle
80 Degrees
Primary Material Application ISO Code
P
Number of Cutting Edges
4
Measurement System
Fractional Inch
Cutting Application
Turning
Material - Machining
Carbide
ANSI Code
CNMG433CQ CA515
Shape
Rhombic
Material
Carbide

Description

Diamond Turning Insert, Chip-Breaker Code CQ, Inscribed Circle 1/2 in, TiCN+Al2O3+TiN, ANSI Code CNMG433CQ CA515, Chip-Breaker Style Molded, On Two Sides, Clearance Angle 0 Degrees
