  11. Diamond Turning Insert, Diamond, 4, DNMG, 2, Carbide

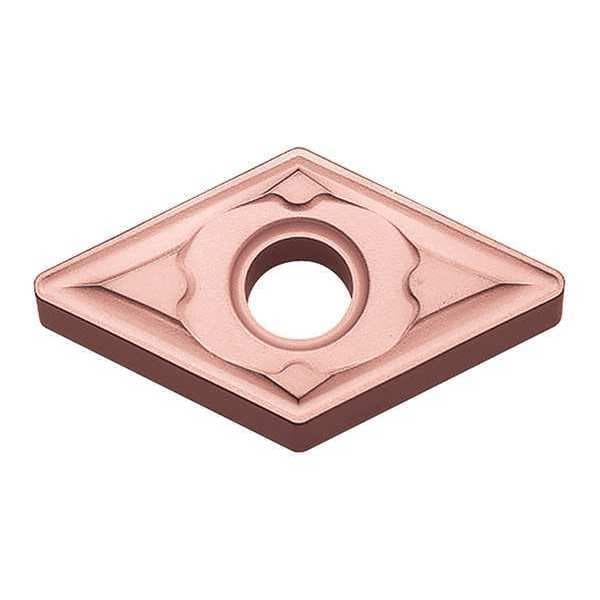

Kyocera Diamond Turning Insert, Diamond, 4, DNMG, 2, Carbide DNMG432CCA310 - main

Diamond Turning Insert, Diamond, 4, DNMG, 2, Carbide

  • Mfr # DNMG432CCA310

  • Zoro # G7434309

product price: $15.49
/ea
Sold in multiples of 10 for $154.90

Key Features

Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNMG432CCA310
Zoro #
G7434309
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
432
Corner Radius
2
Insert Thickness
0.1875"
Nose Radius
0.0313"
Mounting Hole Dia.
0.203"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
CA310
Insert Material
Carbide
Insert Application
Roughing
Rake
Negative
ISO Number
DNMG150408C
Non Ferrous (N) Compatibility
No
Cutting Direction
Neutral
Relief Angle
0 Degrees
Workpiece Compatibility
Cast Iron (K)
Cast Iron (K) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Super Alloy (S) Compatibility
No
Steel (P) Compatibility
No
Hardened (H) Compatibility
No
Stainless (M) Compatibility
No
Coating
TiCN/Al2O3
ANSI Number
DNMG432C-CA310
No. of Edges
4
Mounting Style
Clamp
Primary Material Application ISO Code
K
Clearance Angle
0 Degrees
Number of Cutting Edges
4
Insert Holding Type
Screw
Shape
Rhombic
Material - Machining
Carbide
Chip-Breaker Code
C
Chip-Breaker Style
Ground, On Two Sides
Secondary Material Application ISO Code
K
Included Angle
55 Degrees
Primary Material Application
Cast Iron
Manufacturer Grade
CA310
Cutting Application
Turning
ANSI Code
DNMG432C
Finish - Machining
TiCN+Al2O3+Ti
Measurement System
Fractional Inch
Secondary Material Application
Cast Iron
Material
Carbide

Description

Diamond Turning Insert, Chip-Breaker Code C, Inscribed Circle 1/2 in, TiCN+Al2O3+Ti, ANSI Code DNMG432C, Chip-Breaker Style Ground, On Two Sides, Clearance Angle 0 Degrees
