  11. Diamond Turning Insert, Square, 6, 3

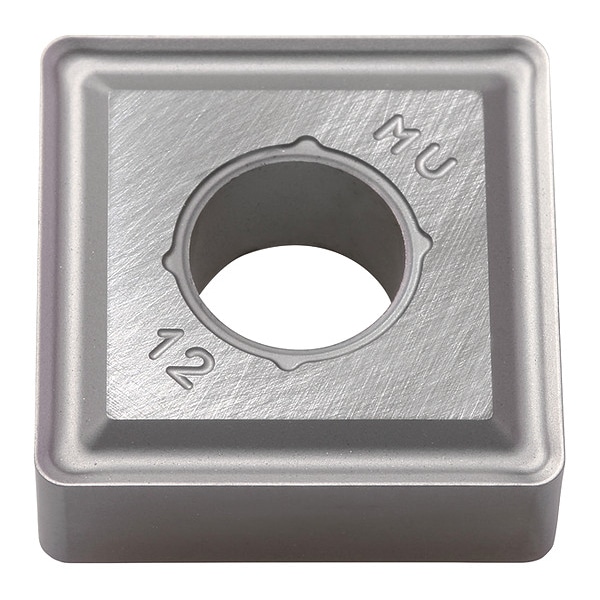

Kyocera Diamond Turning Insert, Square, 6, 3 SNMG643MUPR005S - main

Diamond Turning Insert, Square, 6, 3

  • Mfr # SNMG643MUPR005S

  • Zoro # G7429897

product price: $21.79
/ea
Sold in multiples of 10 for $217.90

Key Features

Insert Shape
Square
Inscribed Circle
6
Chip-Breaker
Yes
Corner Radius
3
Rake
Negative
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNMG643MUPR005S
Zoro #
G7429897
UPC #
-
Country of Origin
Japan

Dimensions

Corner Radius
3
Thickness
4
Through Hole Inside Dia.
0.3126"

Details

Item
Diamond Turning Insert
Insert Shape
Square
Inscribed Circle
6
Chip-Breaker
Yes
Rake
Negative
ISO Number
SNMG190612MU
Cutting Direction
Neutral
Features
Improved Thermal Conductivity by Optimum Distribution of WC Coarse Grains in the Substrate, Resists Heat Concentration at the Cutting Edge to Promote Stable Machining
Shape
Square
General Shape
Square
Insert Holding Type
Screw
Material - Machining
Carbide
Finish - Machining
Megacoat Hard
ANSI Code
SNMG643MU
Manufacturer Grade
PR005S
Clearance Angle
0 Degrees
Chip-Breaker Style
Medium Roughing
Primary Material Application
High-Temperature Alloys
Coating Process
PVD
Included Angle
90 Degrees
Chip-Breaker Code
MU
Hole Type
Straight Hole
Cutting Application
Boring, Chamfering, Continuous to Interrupted Cutting, External Turning, Facing
Measurement System
Fractional Inch
Number of Cutting Edges
8
Primary Material Application ISO Code
S

Description

Diamond Turning Insert, Chip-Breaker Code MU, Inscribed Circle 3/4 in, Megacoat Hard, ANSI Code SNMG643MU, Chip-Breaker Style Medium Roughing, Clearance Angle 0 Degrees , Coating Process PVD

Restrictions

WARNING: This product can expose you to chemicals including Cobalt metal powder, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
