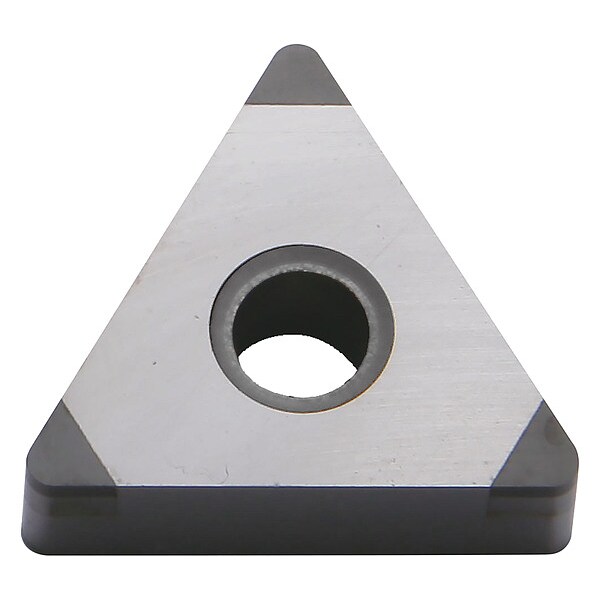

Diamond Turning Insert, Triangle, 3, 1

Mfr # TNGA331MEFKBN570
Zoro # G9732407

108.99

Free Shipping & Returns

Key Features

Insert Shape

Triangle

Inscribed Circle

3/8 in

Chip-Breaker

Yes

Corner Radius

1/64 in

Rake

Negative

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: TNGA331MEFKBN570
Zoro #: G9732407
UPC #: -
Country of Origin: China

Dimensions

Corner Radius: 1/64 in
Thickness: 3/16 in
Through Hole Inside Dia.: 0.1500"

Details

Item: Diamond Turning Insert
Insert Shape: Triangle
Inscribed Circle: 3/8 in
Chip-Breaker: Yes
Rake: Negative
ISO Number: TNGA160404MEF
Cutting Direction: Neutral
Features: For Machining of Sintered Steel (Preventing Burr Formation), High CBN Content Ratio
Shape: Triangle
Manufacturer Grade: KBN570
Chip-Breaker Style: Finishing
Cutting Application: Boring, Chamfering, Copying, External Turning, Facing
Included Angle: 60 Degrees
Chip-Breaker Code: ME
Hole Type: Straight Hole
Material - Machining: CBN
Primary Material Application: Powdered Metal
Number of Cutting Edges: 3
Insert Holding Type: Screw
ANSI Code: TNGA331MEF
Measurement System: Fractional Inch
Clearance Angle: 0 Degrees
General Shape: Triangle

Description

Diamond Turning Insert, Chip-Breaker Code ME, Inscribed Circle 3/8 in, ANSI Code TNGA331MEF, Chip-Breaker Style Finishing, Clearance Angle 0 Degrees
