  11. Diamond Turning Insert, Triangle, 3, 1

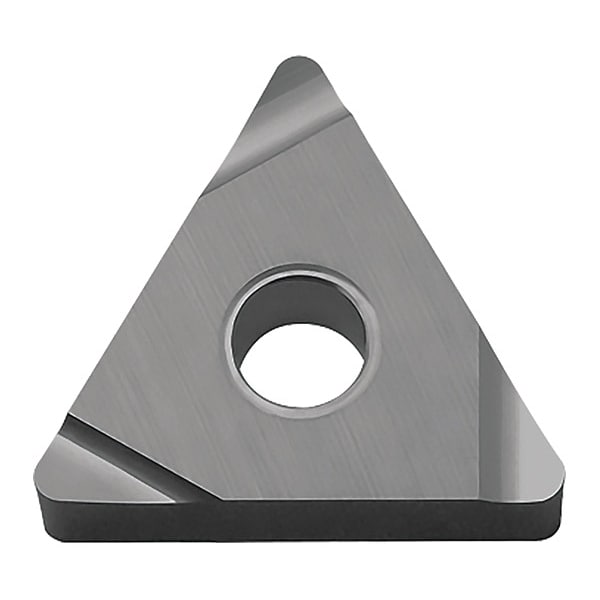

Kyocera Diamond Turning Insert, Triangle, 3, 1 TNGG331RSTN60 - main

Diamond Turning Insert, Triangle, 3, 1

  • Mfr # TNGG331RSTN60

  • Zoro # G7965336

product price: $12.29
/ea
Sold in multiples of 10 for $122.90

Key Features

Insert Shape
Triangle
Inscribed Circle
3
Chip-Breaker
Yes
Corner Radius
1
Rake
Negative
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TNGG331RSTN60
Zoro #
G7965336
UPC #
-
Country of Origin
Multiple

Dimensions

Corner Radius
1
Thickness
3
Through Hole Inside Dia.
0.1500"

Details

Item
Diamond Turning Insert
Insert Shape
Triangle
Inscribed Circle
3
Chip-Breaker
Yes
Rake
Negative
ISO Number
TNGG160404R-S
Cutting Direction
Right Hand
Features
General Purpose Cermet with Superior Wear Resistance and Toughness
Shape
Triangle
Measurement System
Fractional Inch
Secondary Material Application
Stainless Steel
Chip-Breaker Style
Finishing
Hole Type
Straight Hole
Cutting Application
Boring, Chamfering, Copying, External Turning, Facing, Up Facing
Secondary Material Application ISO Code
M
Primary Material Application ISO Code
P
Material - Machining
Cermet
Number of Cutting Edges
6
ANSI Code
TNGG331RS
Finish - Machining
Bright (Uncoated)
Manufacturer Grade
TN60
Clearance Angle
0 Degrees
Primary Material Application
Steel
Cutting Edge
Surface Finish Oriented
Material Grade - Machining
TiCN+NbC Component
Chip-Breaker Code
S
Included Angle
60 Degrees
General Shape
Triangle
Insert Holding Type
Screw

Description

Diamond Turning Insert, Chip-Breaker Code S, Inscribed Circle 3/8 in, Bright (Uncoated), ANSI Code TNGG331RS, Chip-Breaker Style Finishing, Clearance Angle 0 Degrees
