  11. Diamond Turning Insert, Triangle, 3, 2

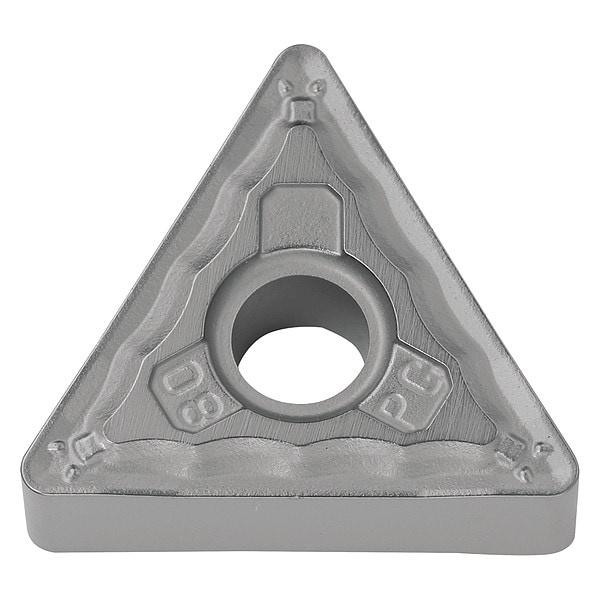

Kyocera Diamond Turning Insert, Triangle, 3, 2 TNMG332PGTN620 - main

Diamond Turning Insert, Triangle, 3, 2

  • Mfr # TNMG332PGTN620

  • Zoro # G7416773

product price: $7.65
/ea
Sold in multiples of 10 for $76.50

Key Features

Insert Shape
Triangle
Inscribed Circle
3
Chip-Breaker
Yes
Corner Radius
2
Rake
Negative
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TNMG332PGTN620
Zoro #
G7416773
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Corner Radius
2
Thickness
3
Through Hole Inside Dia.
0.1500"

Details

Item
Diamond Turning Insert
Insert Shape
Triangle
Inscribed Circle
3
Chip-Breaker
Yes
Rake
Negative
ISO Number
TNMG160408PG
Cutting Direction
Neutral
Features
Inner Structure Has High Toughness and Chipping Resistance Along with Thermal Shock Resistance, Recommended Cermet for Stable Steel Machining and High Quality Surface Finish
Shape
Triangle
Primary Material Application
Steel
Clearance Angle
0 Degrees
Chip-Breaker Code
PG
Hole Type
Straight Hole
Number of Cutting Edges
6
Included Angle
60 Degrees
Chip-Breaker Style
Medium Roughing
Measurement System
Fractional Inch
Manufacturer Grade
TN620
ANSI Code
TNMG332PG
Material - Machining
Cermet
Insert Holding Type
Screw
Cutting Application
Boring, Chamfering, Copying, External Turning, Facing
Primary Material Application ISO Code
P
General Shape
Triangle
Finish - Machining
Bright (Uncoated)

Description

Diamond Turning Insert, Chip-Breaker Code PG, Inscribed Circle 3/8 in, Bright (Uncoated), ANSI Code TNMG332PG, Chip-Breaker Style Medium Roughing, Clearance Angle 0 Degrees

Restrictions

WARNING: This product can expose you to chemicals including Cobalt metal powder, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
