  11. Diamond Turning Insert, Trigon, 4, 2

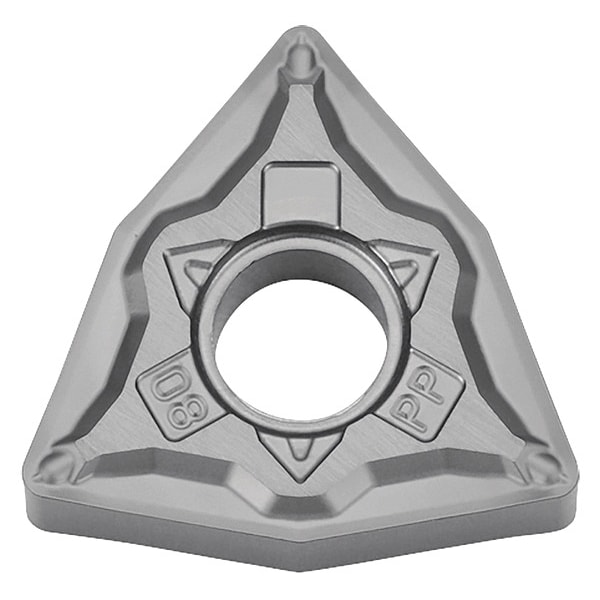

Kyocera Diamond Turning Insert, Trigon, 4, 2 WNMG432PPTN620 - main

Diamond Turning Insert, Trigon, 4, 2

  • Mfr # WNMG432PPTN620

  • Zoro # G7417568

product price: $10.09
/ea
Sold in multiples of 10 for $100.90

Key Features

Insert Shape
Trigon
Inscribed Circle
4
Chip-Breaker
Yes
Corner Radius
2
Rake
Negative
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WNMG432PPTN620
Zoro #
G7417568
UPC #
-
Country of Origin
Japan

Dimensions

Corner Radius
2
Thickness
3
Through Hole Inside Dia.
0.2031"

Details

Item
Diamond Turning Insert
Insert Shape
Trigon
Inscribed Circle
4
Chip-Breaker
Yes
Rake
Negative
ISO Number
WNMG080408PP
Cutting Direction
Neutral
Features
Inner Structure Has High Toughness and Chipping Resistance Along with Thermal Shock Resistance, Recommended Cermet for Stable Steel Machining and High Quality Surface Finish
Shape
Trigon
Measurement System
Fractional Inch
Material - Machining
Cermet
General Shape
Trigon
ANSI Code
WNMG432PP
Clearance Angle
0 Degrees
Chip-Breaker Code
PP
Cutting Application
Boring, External Turning, Facing, Internal Facing
Included Angle
80 Degrees
Primary Material Application ISO Code
P
Primary Material Application
Steel
Hole Type
Straight Hole
Manufacturer Grade
TN620
Chip-Breaker Style
Finishing
Insert Holding Type
Screw
Number of Cutting Edges
6
Finish - Machining
Bright (Uncoated)

Description

Diamond Turning Insert, Chip-Breaker Code PP, Inscribed Circle 1/2 in, Bright (Uncoated), ANSI Code WNMG432PP, Chip-Breaker Style Finishing, Clearance Angle 0 Degrees

Restrictions

WARNING: This product can expose you to chemicals including Cobalt metal powder, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
