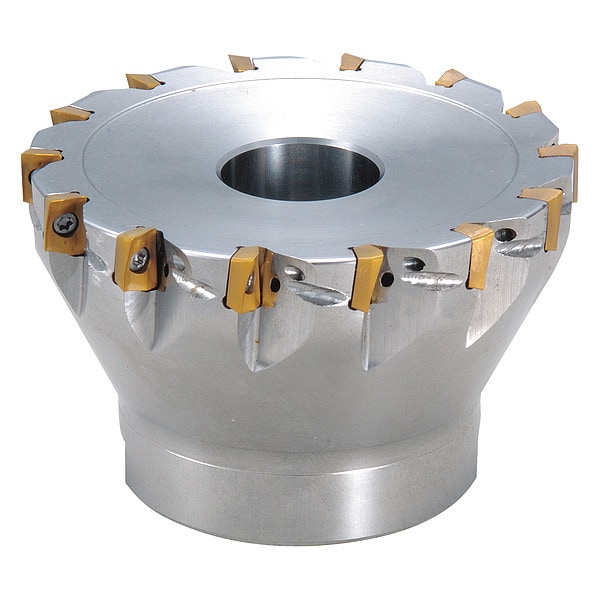

Face Mill, MECX 2000R0712T, MECX 200"
Mfr # MECX2000R0712T
Zoro # G3832895
product price:Â $1,049.99
/ea
Free Shipping & Returns
Key Features
Depth of Cut
0.2362 in
Overall Length
1.5748 in
Cutting Direction
Right Hand
Insert Size
0703
Features
Extra Fine Pitch Increases Machining Efficiency with Low Cutting Forces to Make the MECX Ideal for Lower Horsepower Machines
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MECX2000R0712T
- Zoro #
- G3832895
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Depth of Cut
- 0.2362 in
- Overall Length
- 1.5748 in
- Insert Size
- 0703
- Hub Outside Dia.
- 1.5748 in
- Arbor Dia.
- 3/4 in
- Max. Cutting Dia.
- 2 in
- Wire Rope Length
- 1.5748 in
Details
- Item
- Indexable Face Mill
- Cutting Direction
- Right Hand
- Features
- Extra Fine Pitch Increases Machining Efficiency with Low Cutting Forces to Make the MECX Ideal for Lower Horsepower Machines
- Coolant Fed
- Coolant Through
- Side Cutting Edge Angle
- 90 Degrees
- Max. Speed
- 27,700 RPM
- ANSI Code
- MECX2000R0712T
- Cutting Application
- Face Milling, Helical Milling, Shoulder Milling, Slotting
- ISO Number
- MECX2000R-07-12T
- Insert Style
- BDMT
- Rake
- -8.3 Degrees Radial, 7 Degrees Axial
- Number of Inserts
- 12
- Insert Holding Type
- Screw
Description
Indexable Face Mill, Max. Cutting Dia. 2 in, Arbor Dia. 3/4 in, Depth of Cut 0.2362 in, ANSI Code MECX2000R0712T, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Shoulder Milling, Slotting
