  11. Milling Insert, Square, SOMT 100420ERFL

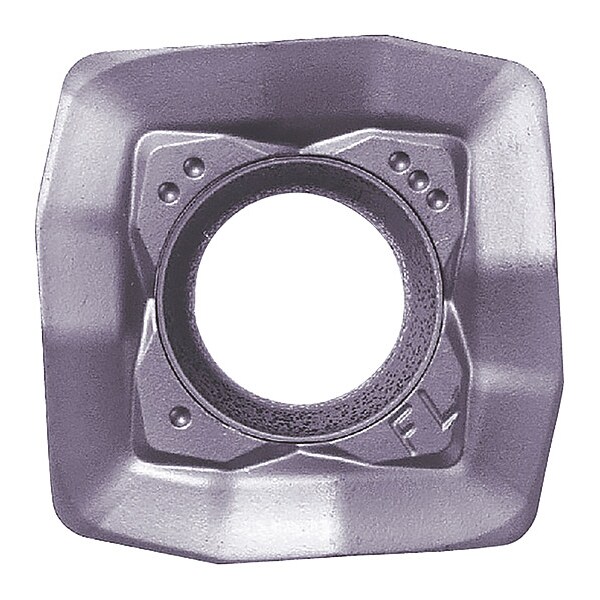

Kyocera Milling Insert, Square, SOMT 100420ERFL SOMT100420ERFLPR1510 - main

Milling Insert, Square, SOMT 100420ERFL

  • Mfr # SOMT100420ERFLPR1510

  • Zoro # G8278516

product price: $12.85
/ea
Sold in multiples of 10 for $128.50

Key Features

Insert Style
SOMT
Insert Size
100420
Corner Radius
2.00mm
Chip-Breaker
Yes
ISO Number
SOMT100420ER-FL
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SOMT100420ERFLPR1510
Zoro #
G8278516
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
100420
Corner Radius
2.00mm
Mounting Hole Dia.
4.60mm
Thickness
4.58mm
Through Hole Inside Dia.
4.60mm

Details

Item
Parallelogram Milling Insert
Insert Style
SOMT
Chip-Breaker
Yes
ISO Number
SOMT100420ER-FL
Inscribed Circle
10.45mm
Rake
Positive
Cutting Direction
Right Hand
Features
1.40mm Wiper Edge Length, For Gray and Nodular Cast Iron, Wear Resistance and High Oxidation Resistance
Number of Cutting Edges
4
ANSI Code
SOMT100420ERFL
Finish - Machining
Megacoat Nano
Hole Type
Countersunk Hole
Cutting Application
Facing, Helical Milling, High Feed, Plunging, Pocketing, Ramping, Shouldering, Slotting
Primary Material Application
Cast Iron
Measurement System
Metric
Coating Process
PVD
Chip-Breaker Code
ER-FL
Included Angle
90 Degrees
Manufacturer Grade
PR1510
Material - Machining
Carbide
Secondary Material Application
High-Temperature Alloys
Clearance Angle
16 Degrees
Primary Material Application ISO Code
K
Insert Holding Type
Screw
Wiper Insert
Yes
Cutting Edge
Honed
For Toolholder
MFH...-10
Shape
Square
Secondary Material Application ISO Code
S

Description

Parallelogram Milling Insert, Inscribed Circle 10.45mm, Positive, SOMT100420ERFL, ER-FL, 16 Degrees
