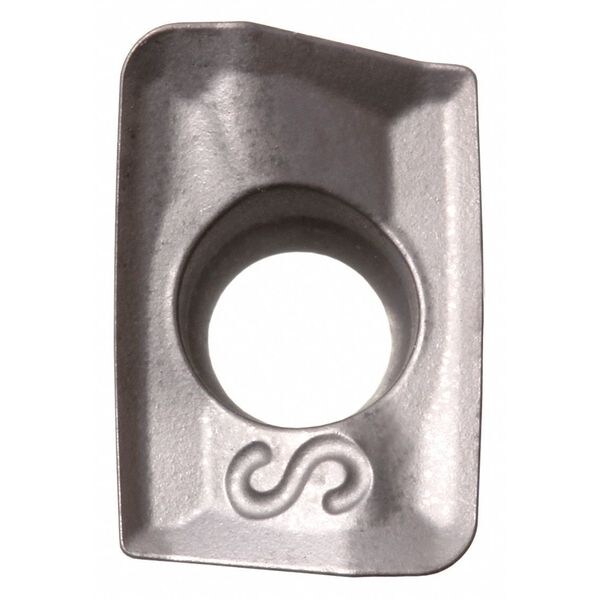

Kyocera Parallelogram BDMT Carbide BDMT170408ERJSPR1535 - main

Parallelogram BDMT Carbide

  • Mfr # BDMT170408ERJSPR1535

  • Zoro # G6264531

product price: $17.35
/ea
Sold in multiples of 10 for $173.50

Key Features

Insert Style
BDMT
Insert Shape
Parallelogram
Insert Size
170408
Insert Material
Carbide
Corner Radius
0.0315 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BDMT170408ERJSPR1535
Zoro #
G6264531
UPC #
-
Country of Origin
Multiple

Dimensions

Insert Size
170408
Corner Radius
0.0315 in
Nose Radius
0.031"
Mounting Hole Dia.
0.1730 in
Insert Thickness
0.193"
Thickness
0.193 in
Through Hole Inside Dia.
0.1730 in
Cutting Edge Length
17.00mm
Width
0.3780 in

Details

Item
Parallelogram Milling Insert
Insert Style
BDMT
Insert Shape
Parallelogram
Insert Material
Carbide
Grade
PR1535
ISO Number
BDMT170408ERJSPR1535
Mounting Style
Screw
Workpiece Compatibility
Stainless (M), Super Alloy (S)
Cutting Direction
Right Hand
Rake
Positive
Stainless (M) Compatibility
Yes
Steel (P) Compatibility
No
Hardened (H) Compatibility
No
Lead Angle
90 Degrees
Insert Application
Milling
No. of Edges
2
Inscribed Circle
0.378 in
For Use With
MEC040R-17-4T-M, MEC050R-17-4T-M, MEC050R-17-5T-M, MEC063R-17-5T, MEC063R-17-5T-M, MEC063R-17-6T, MEC063R-17-6T-M, MEC080R-17-6T, MEC080R-17-6T-M, MEC080R-17-8T, MEC1000-S100-17, MEC1000-S100-6.3-17, MEC100R-17-7T-MN, MEC100R-17-7TN, MEC100R-17-9TN, MEC1250-S100-17 , MEC1250-S125-17, MEC1250-S125-7.9-17, MEC125R-17-9T, MEC125R-17-9T-M, MEC1500-S125-17 , MEC1500-S125-9.5-17, MEC160R-17-12T, MEC160R-17-12T-M, MEC2000R-17-4T, MEC25-M12-17-2T, MEC25-S20-17, MEC25-S25-160-17, MEC25-S25-17, MEC25-S25-210-17, MEC2500R-17-5T, MEC28-S25-210-17, MEC3000R-17-6T, MEC32-M16-17-3T, MEC32-S25-17, MEC32-S32-17, MEC32-S32-200-17, MEC32-S32-250-17, MEC32-S32-250-17-3, MEC35-S32-250-17, MEC40-S32-17, MEC40-S32-240-17, MEC40-S32-250-17-3, MEC40-S32-250-17-4, MEC4000R-17-7TN, MEC50-S32-17, MEC50-S42-250-17-4, Mfr. No. MEC1000-S750-17
Coating
Megacoat Nano
Cast Iron (K) Compatibility
No
Non Ferrous (N) Compatibility
No
ANSI Number
BDMT170408ERJSPR1535
Super Alloy (S) Compatibility
Yes
Chip-Breaker
Yes
Series
MEC
Hole Type
40 Degrees to 60 Degrees Double Countersink Hole
Insert Holding Type
Screw
Primary Material Application
Nickel, Stainless Steel, Titanium
Finish - Machining
Megacoat Nano
Manufacturer Grade
PR1535
Features
Wear Resistance and Stability
ANSI Code
BDMT11T308ERJSPR1535
Included Angle
82 Degrees
Secondary Material Application
Nickel, Stainless Steel, Steel, Titanium
Chip-Breaker Style
Single Sided
Coating Process
CVD
Measurement System
Metric
Material - Machining
Carbide
Shape
Parallelogram
Cutting Application
Milling
Clearance Angle
15 Degrees
Number of Cutting Edges
2
Secondary Material Application ISO Code
M, P, S
Chip-Breaker Code
JS
Primary Material Application ISO Code
M, S

Description

Parallelogram Milling Insert, Inscribed Circle 0.378 in, Positive, BDMT11T308ERJSPR1535, JS, Single Sided, 15 Degrees
